Hyundai Creta: Ignition Switch Assembly / Repair procedures

Hyundai Creta GS 2014-2025 Service Manual / Body Electrical System / Ignition Switch Assembly / Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the driver crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel")

3.	Remove the steering column upper and lower shroud panel. (Refer to Body - "Steering Column Shroud Panel")

4.	Remove the wiper switch. (Refer to Multifunction Switch - "Multifunction Switch")

5.	Remove the key warning/immobilizer connector (A).

6.	Insert key and turn it to ACC position.

7.	Pushing lock pin (A) with the awl.

8.	Remove the key lock cylinder (A). B : Key warning switch C : Ignition switch connector

Installation

1.	Install the key lock cylinder.

2.	Install the key warning switch.

3.	Install the key warning/immobilizer connector.

4.	Connect the ignition switch connector after Install the ignition switch.

5.	Install the wiper switch.

6.	Install the steering column shrouds.

7.	Install the driver crash pad lower panel.

Inspection

1.	Disconnect the ignition switch connector (B) and key warning switch connector (A) from the steering column.

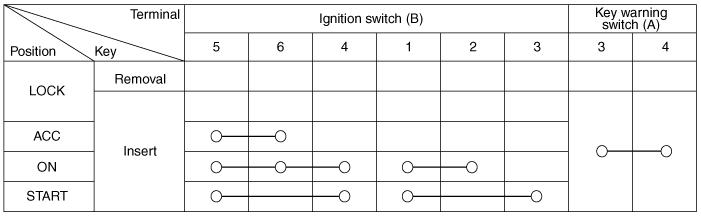

2.	Check for continuity between the terminals.

3.	If continuity is not specified, replace the switch.
