Hyundai Creta: AVN System / Roof Antenna

Hyundai Creta GS 2014-2024 Service Manual / Body Electrical System / AVN System / Roof Antenna

Components and components location

Components

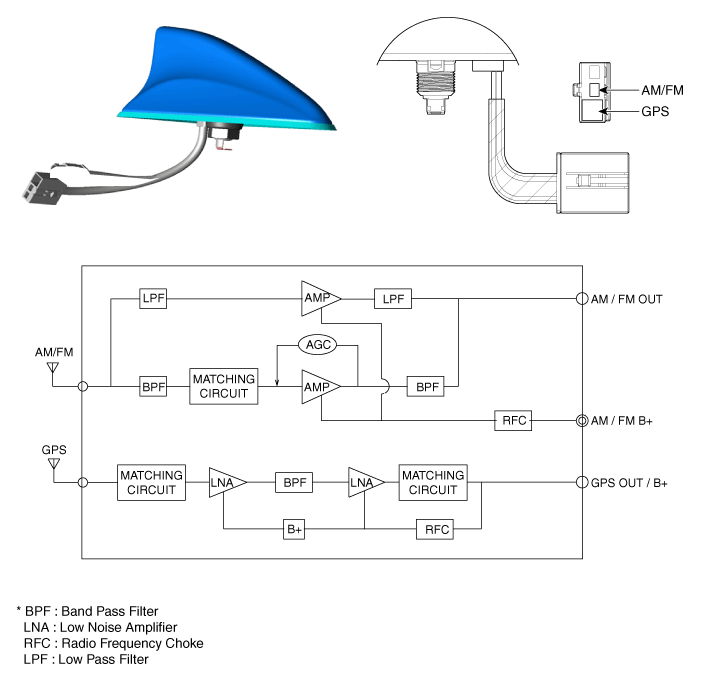

[Roof Antenna (AM/FM+GPS) for AVN Head Unit]

Repair procedures

Removal

1.	Remove the rear roof trim. (Refer to Body - "Roof Trim Assembly")

2.	Disconnect the roof antenna connectors (A) from the roof antenna.

3.	Remove the roof antenna (A) after removing a nut (B).

Installation

1.	Connect the roof antenna connectors.

Install the rear roof trim.

•	Make sure that the cables and connectors are plugged in properly.

•	Check the audio system.
