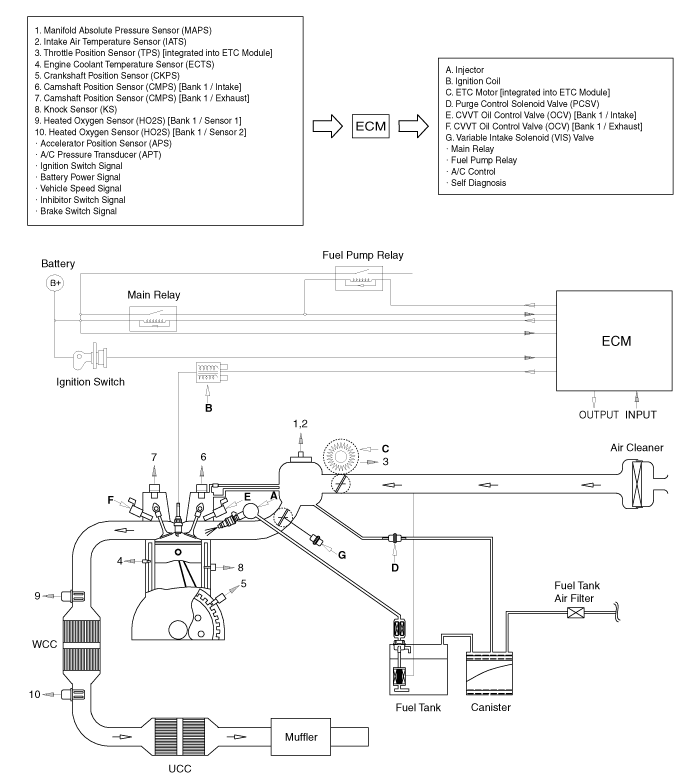

Hyundai Creta: General Information / Schematic diagrams
| Schematic Diagram |
Troubleshooting
Troubleshooting
Symptom
Suspect area
Engine will not start or struggle to start
Vapor hose damaged or disconnected
...
Components and components location
Components Location
1. PCV valve
2. Canister
3. Fuel tank air filter
4. Purge control solenoid valve
(PCSV)
5. Catalytic converter (WCC/UCC)
...
