Hyundai Creta: Electric Power Steering / Schematic diagrams

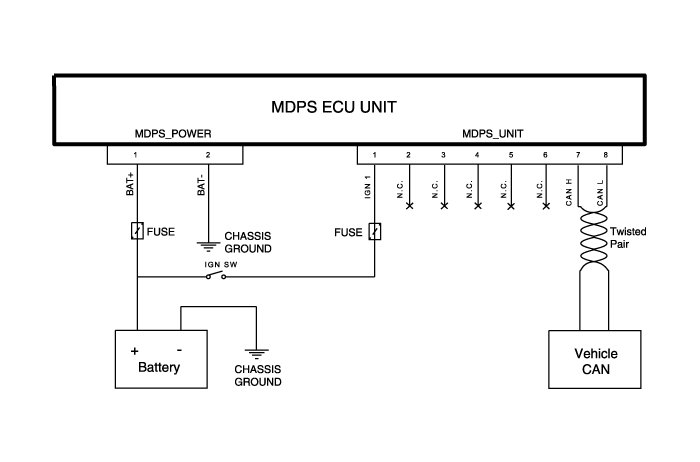

| Schematic Diagrams |

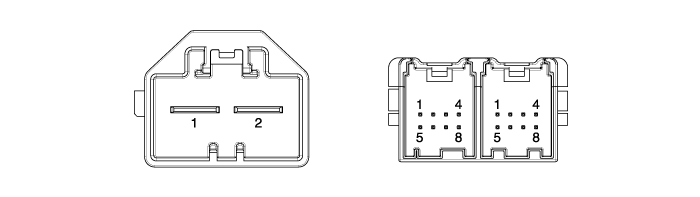

| Terminal function |
|
Type |
Pin No |
Description |
|
MDPS Power |
1 |
Battery + |
|
2 |
Battery - |
|
|
MDPS Unit |
1 |
IGN |
|
2 |
- |
|
|
3 |
- |
|
|
4 |
- |
|
|
5 |
- |
|
|
6 |
- |
|
|
7 |
CAN_High |
|
|
8 |
CAN_Low |
Description and operation
Description
EPS (Electric power steering, Column assist type) system uses an electric motor
to assist the steering force and it is an engine operation independent steering
system ...
Repair procedures
General Inspection
After or before servicing the EPS system, perform the troubleshooting and test
procedure as follows. Compare the system condition with normal condition in
the ...
