Hyundai Creta GS 2014-2025 Service Manual / Brake System / ESP(Electronic Stability Program) System / Schematic diagrams

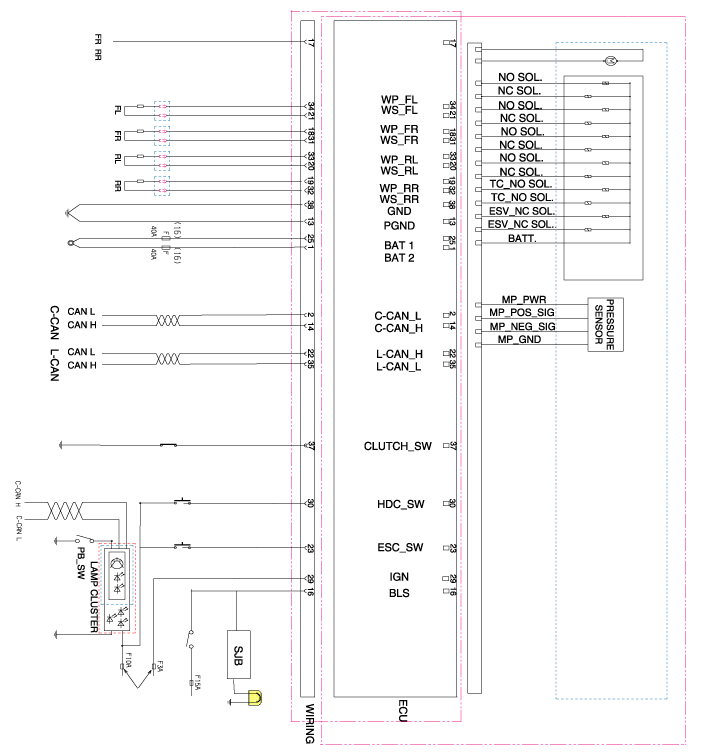

Schematic diagram

Terminal Function

ABS Connector Input/ Out put

Wire No.	Designation	Current12V(AMPS)	max.permissible wire resistance (OHMS)
13	Ground for recirculation pump	137(Rush)	10 m
38	Ground for solenoid valves and ECU	40	10m
1	Voltage supply for pump motor	137(Rush)	10 m
25	Voltage supply for solenoid valves	40	10m
29	IGNITION1(+)	50m	60m
21,31,20,32	Active wheel signal wheel speed sensor FL, FR, RL,RR signal	16.8m	250m
34,18,33,19	Voltage supply for the active wheel speed sensor FL,FR, RL, RR	30m	250 m
16	Brake light switch (Signal)	10m	250m
14	Chassis CAN High	30m	250 m
17	Wheel speed sensor output	16m	250m
2	Chassis CAN Low	30m	250 m
23	ESP ON/OFF switch	10m	250 m
30	HDC ON/OFF switch	10m	250 m
22	Local CAN High	30m	250 m
35	Local CAN Low	30m	250m
35	Clutch switch	10m	250m

Description and operation

Description of ESP Optimum driving safety now has a name : ESP, the Electronic Stability Program. ESP recognizes critical driving conditions, such as panic reactions in dangero ...
