Hyundai Creta: Button Engine Start System / Schematic diagrams

Components and components location

Component Location 1. Smart key unit 2. Interior antenna 1 3. Door outside handle 4. Start Stop Button (SSB) 5. Electronic steering column lock (ESCL) 6 ...

Description and operation

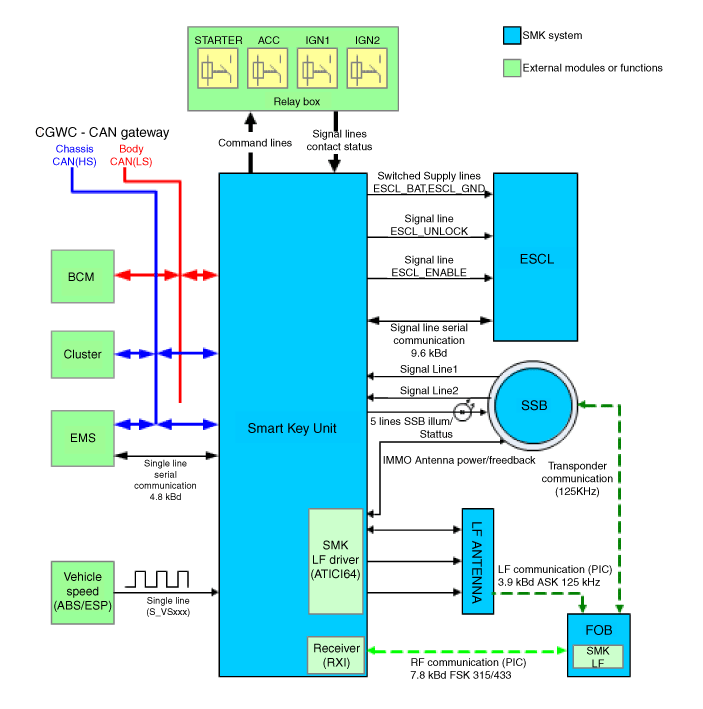

Description System Overview The System offers the following features: – Human machine interface through a 1-stage button, for terminal switching and eng ...
