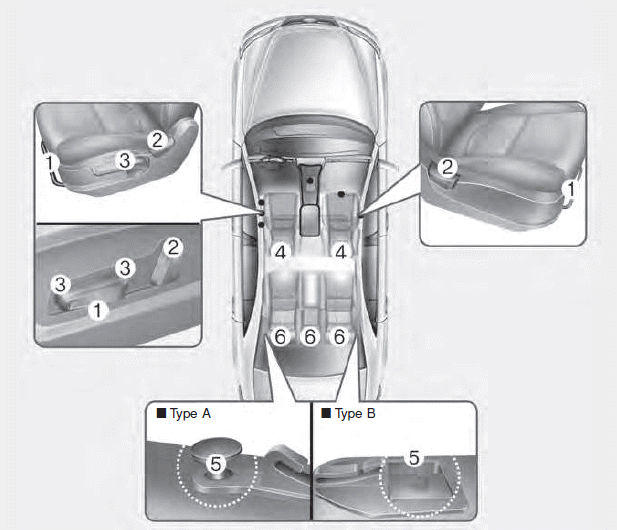

â– Left-hand drive
Front seats
1. Seat adjustment, forward/rearward
2. Seatback angle
3. Seat adjustment, height*
4. Headrest adjustment
Rear seats
5. Seat folding*
6. Headrest adjustment*

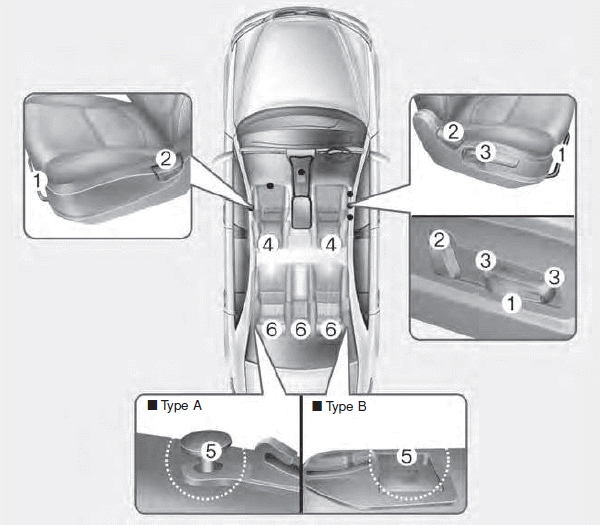

â– Right-hand drive
Front seats
1. Seat adjustment, forward/rearward
2. Seatback angle
3. Seat adjustment, height*
4. Headrest adjustment
Rear seats
5. Seat folding*
6. Headrest adjustment*
WARNING
Loose objects
Loose objects in the driver’s foot area could interfere with the operation of the foot pedals, possibly causing an accident. Do not place anything under the front seats.
WARNING
Uprighting seat
When you return the seatback to its upright position, hold the seatback and return it slowly and be sure there are no other occupants around the seat. If the seatback is returned without being held and controlled, the back of the seat could move forward or backward resulting in accidental injury to a person struck by the seatback.
WARNING
Driver responsibility for passengers
Riding in a vehicle with seatback reclined could lead to serious or fatal injury in an accident. If a seat is reclined during an accident, the occupant’s hips may slide under the lap portion of the seat belt applying great force to the unprotected abdomen. The protection of your restraint system (seat belt and air bags) is greatly reduced by reclining your seat. Serious or fatal internal injuries could result. The driver must advise the passenger to keep the seatback in an upright position whenever the vehicle is in motion.
WARNING
Do not use a sitting cushion that reduces friction between the seat and passenger. The passenger's hips may slide under the lap portion of the seat belt during an accident or a sudden stop. Serious or fatal internal injuries could result because the seat belt can't operate normally.
WARNING
Driver’s seat
WARNING
Rear seatbacks
WARNING
After adjusting the seat, always check that it is securely locked into place by attempting to move the seat forward or backward without using the lock release lever. Sudden or unexpected movement of the driver's seat could cause you to lose control of the vehicle resulting in an accident.
WARNING
