Components and components location

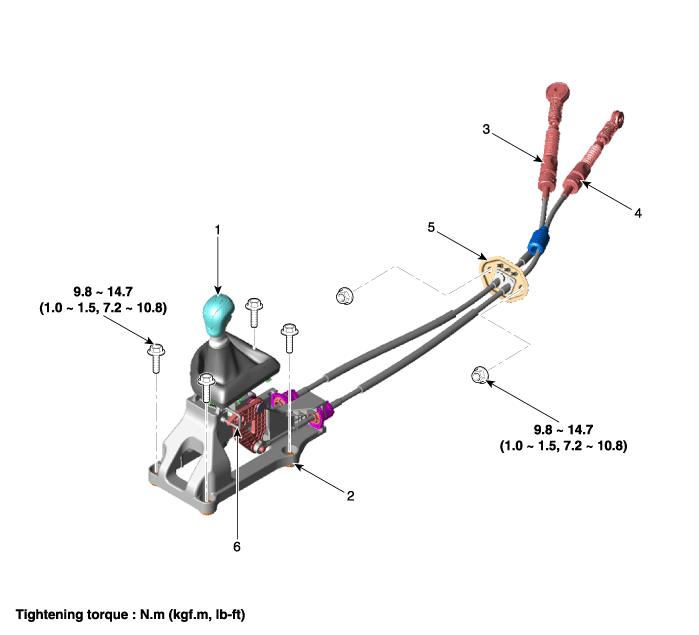

Components

1. Shift lever knob & boots
2. Shift lever assembly
3. Shift cable

4. Select cable
5. Retainer
6. 4th fixed pin

Repair procedures

Removal

1.	Remove the shift lever knob & boots (A) after turning in the counter clock-wise direction.

2.	Remove the floor console assembly. (Refer to Body - "Floor Console")

3.	Remove the air duct (A).

4.	Disconnect the shift cable (B) and select cable (C) after removing the snap pin (A).

Remove the shift lever assembly (A) after removing the bolts (B-4ea).

Tightening torque:

9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.8 lb-ft)

Installation

Install in the reverse order of removal.

•	New shift lever assembly is mounted in the 4th fixing pin. After installation, remove the 4th fixed pin.

•	Check operating of lever of transaxle side when operating shift lever after assembly. (1~6,R)
