Hyundai Creta: Airbag Module / Side Airbag (SAB) Module
Description and operation
The Side Airbags (SAB) are installed inside the front seat and protects the
driver and passenger from danger when side crash occurs. The SRSCM determines
deployment of side airbag by using Side Impact Sensor (SIS) signal.
| • |
Never attempt to measure the circuit resistance of the airbag
module (squib) even if you are using the specified tester. If
the circuit resistance is measured with a tester, accidental
airbag deployment will result in serious personal injury.
|
|

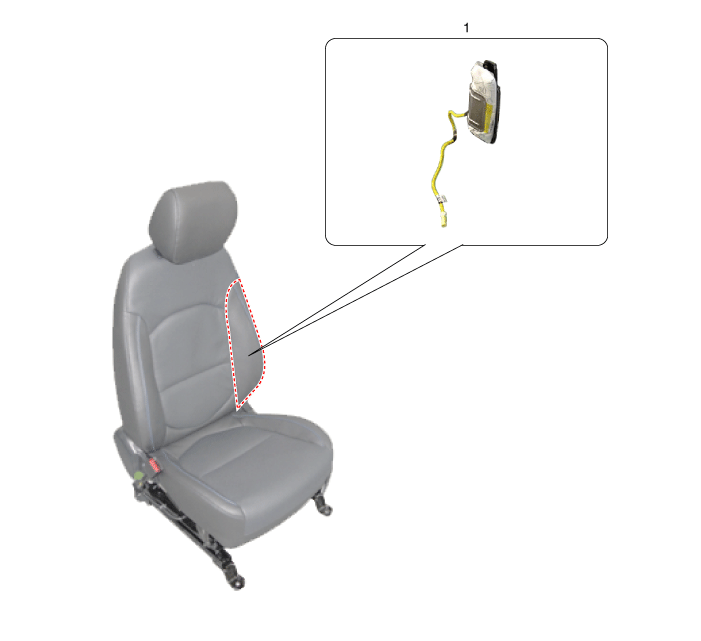

Components and components location
Repair procedures
| • |
The side airbag cannot be disassembled from the seat back assembly,
so replace the seat back assembly when replacing the side airbag.
|
|
| 1. |
Disconnect the battery negative cable and wait for at least 3 minutes
before beginning work.
|
| 2. |
Remove the front seat assembly.
(Refer to Body - "Front Seat Assembly")
|
| 3. |
Remove the seat back assembly.
(Refer to Body - "Front Seat Back Assembly")
|
| 4. |
Loosen the SAB mounting nuts (A) and remove the SAB module.
|
| • |
Be sure to install the harness wires so they will not pinch
or interfere with other parts.
|
|
| • |
Do not open the lid of the side airbag cover.
|
| • |
Make sure that the airbag assembly cover is installed properly.
Improper installation may prevent the proper deployment.
|
|
| 1. |
Remove the ignition key from the vehicle.
|
| 2. |
Disconnect the battery negative cable and wait for at least three minutes.
|
| 3. |
Install the new seat back assembly.
(Refer to Body - "Front Seat Back Assembly")
|
| 4. |
Install the front seat assembly.
(Refer to Body - "Front Seat Assembly")
|
| 5. |
Recline and slide the front seat forward fully, make sure the harness
wires are not pinched of interfere with other parts.
|
| 6. |
Reconnect the battery negative cable.
|
| 7. |
After installing the side airbag (SAB), confirm proper system operation
:
| • |
Turn the ignition switch ON; the SRS indicator light should
be turned on for about six seconds and then go off.
|
|
