Hyundai Creta: Body Side Molding / Side Sill Molding: Repair procedures

Hyundai Creta GS 2014-2019 Service Manual / Body (Interior and Exterior) / Body Side Molding / Side Sill Molding: Repair procedures

Replacement

•	Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Take care not to scratch the body surface.

1.	Loosen the side sill molding mounting screws.

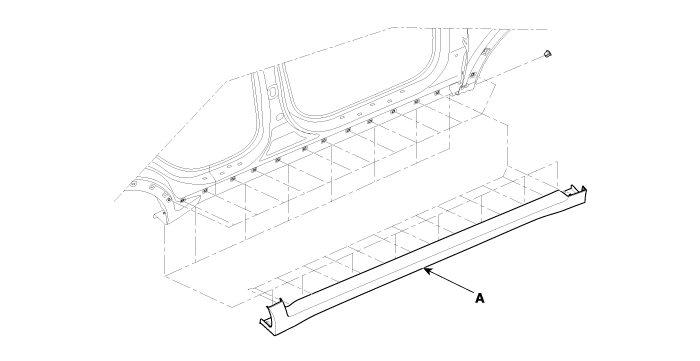

2.	Using a screwdriver or remover, remove the side sill molding (A).

To install, reverse the removal procedure.

•	Replace any damaged clips.
