Your HYUNDAI uses a Smart Key, which you can use to lock or unlock a door (and tailgate) and even start the engine.

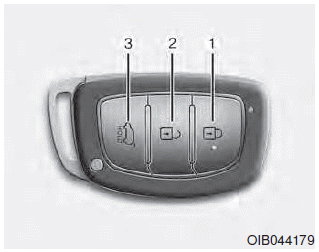

1. Door Lock
2. Door Unlock
3. Tailgate Unlock
To lock :
1. Close all doors, engine hood and
tailgate.

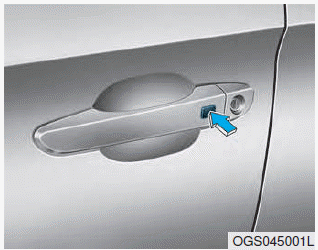

2. Either press the door handle button
or press the Door Lock button
(1) on the smart key.
3. The hazard warning lights will
blink.
4. Make sure the doors are locked by
checking the position of the door
lock button inside the vehicle.
Even though you press the outside door handle button, the doors will not lock and the chime will sound for three seconds if any of the following occur:
WARNING
Do not leave the Smart Key in your vehicle with unsupervised children. Unattended children could press the Engine Start/ Stop button and may operate power windows or other controls, or even make the vehicle move, which could result in serious injury or death.
To unlock:
1. Carry the Smart Key.

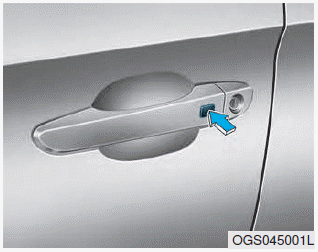

2. Either press the door handle button or press the Door Unlock button (2) on the smart key.
3. The doors will unlock. The hazard warning lights will blink two times.
To unlock:
1. Carry the smart key.
2. Either press the tailgate handle button or press the Tailgate Unlock button (3) on the smart key for more than one second.
3. The hazard warning lights will blink two times.
Once the tailgate is opened and then closed, the tailgate will lock automatically.
You can start the engine without inserting the key. For detailed information refer to the Engine Start/Stop button in chapter 5.
NOTICE
To prevent damaging the smart key:
If the Smart Key does not operate normally, you can lock or unlock the door by using the mechanical key.

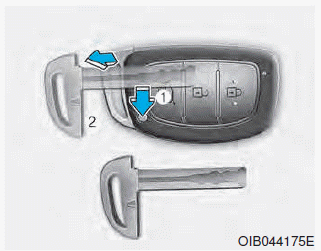

Press and hold the release button (1) and remove the mechanical key (2). Insert the mechanical key into the key hole on the door.
To reinstall the mechanical key, put the key into the hole and push it until a click sound is heard.
A maximum of two smart keys can be registered to a single vehicle. If you happen to lose your smart key, it is recommended that you should immediately take the vehicle and remaining key to your authorized HYUNDAI dealer or tow the vehicle, if necessary.
