Hyundai Creta: General Information / Special service tools

Special Service Tools
Tools
(Number and name)
Illustration
Use
09200-3N000
Engine support fixture (Beam)

Removal and installation of the transaxle.
Use this beam (SST No. : 09200-3N000) with the supporter (SST No. : 09200-2S000).
※Permit operating with 09200-38001.
※Refer to the engine support fixture assembly drawing below.
09200-2S000
Engine support fixture (Supporter)

Removal and installation of the transaxle.
Use this supporter (SST No. : 09200-2S000) with the beam (SST No. : 09200-38001/3N000)).
※Refer to the engine support fixture assembly drawing below.
09452-26100
Oil seal installer

Installation of the differential oil seal in the transaxle case and housing side (2WD).
[Using with bar (SST No.09231-H1100)]
09231-H1100
Bar

Installation of the differential oil seal in the transaxle case and housing side.
[Using with oil seal installer (SST No.: 09452-26100)]
09480-A3800
Inhibitor switch neutral fixed pin

Used to align the neutral position when installing the manual control lever on the inhibitor switch.

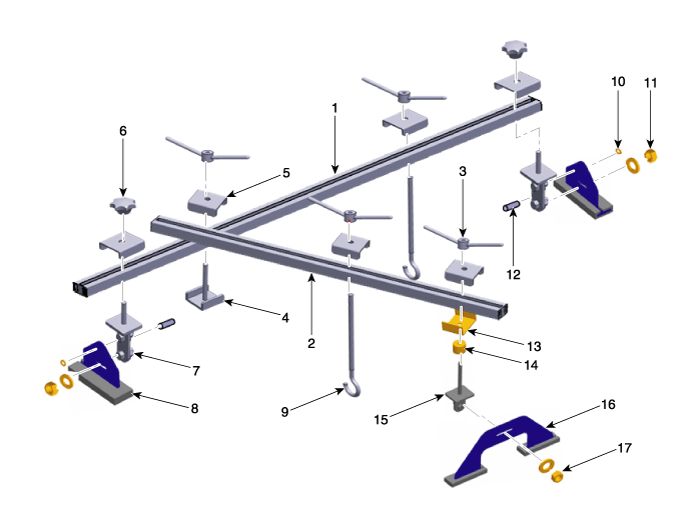

※ Engine support fixture special tool assembly drawing

1. Main bar
2. Sub bar
3. Handle
4. Stopper
5. Stopper
6. Knobe
7. Adapter
8. Supporter
9. Hanger
10. Clip
11. Nut
12. Pin
13. Stopper
14. Spacer
15. Adapter
16. Supporter
17. Nut
