| Description |
| • |
SS-A solenoid valve is attached to the valve body and is an on/off solenoid
valve that is used to change gears.
|
| • |
SS-A Solenoid valve (ON/OFF) is installed at valve body.
|
| Specifications |
|
Control pressure [kpa (kgf/cm², psi)] |
490.33 (5.0, 71.12) |
| Internal
resistance (Ω) |
10 ~ 11 |

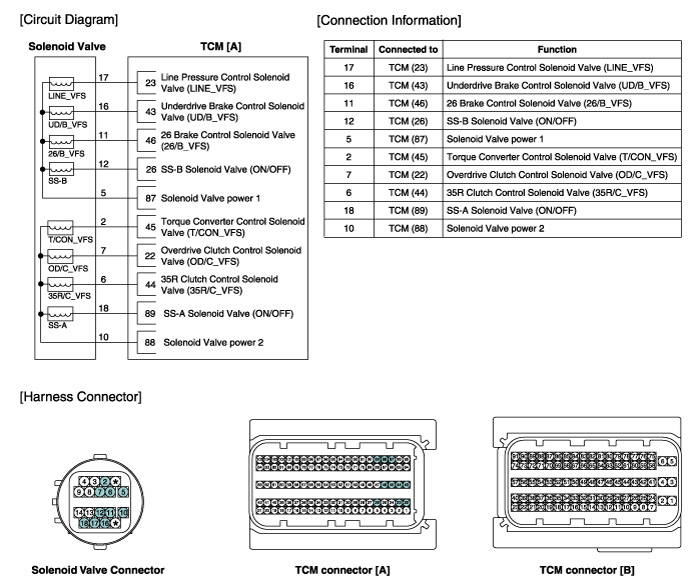

| Circuit Diagram |

| Inspection |
| 1. |
Turn ignition switch OFF.
|
| 2. |
Remove the battery and battery tray.
(Refer to Engine Electrical System - "Battery")
|
| 3. |
Disconnect the solenoid valve connector (A).
|
| 4. |
Measure resistance between solenoid valve terminals.
|
| 5. |
Check that the resistance is within the specification.
|
| Removal |
| 1. |
Remove the battery and battery tray.
(Refer to Engine Electrical System - "Battery")
|
| 2. |
Remove the under cover.
(Refer to Engine Mechanical System - "Engine Room Under Cover")
|
| 3. |
Remove the drain plug (A) and reinstall the drain plug after draining
ATF totally.
|
| 4. |
Remove the wiring mounting bolt (A) or clip.
|
| 5. |
Disconnect the air breather hose (A) from the valve body cover.
|
| 6. |
Remove the valve body cover (A).
|
| 7. |
Disconnect the oil temperature sensor (A) and solenoid valve connector
(B) from the valve body.
|
| 8. |
Remove the solenoid valve support bracket (A).
|
| 9. |
Remove the SS-B solenoid valve (A).
|
| Installation |
| 1. |
To install, reverse the removal procedure.
|
| 2. |
Check fluid level, after filling the automatic transaxle with fluid.
(Refer to Hydraulic System - "Fluid")
|
| 3. |
Perform the TCM adaptive values learning procedure.
(Refer to Automatic Transaxle Control System - "Repair procedures")
|
