Components and components location

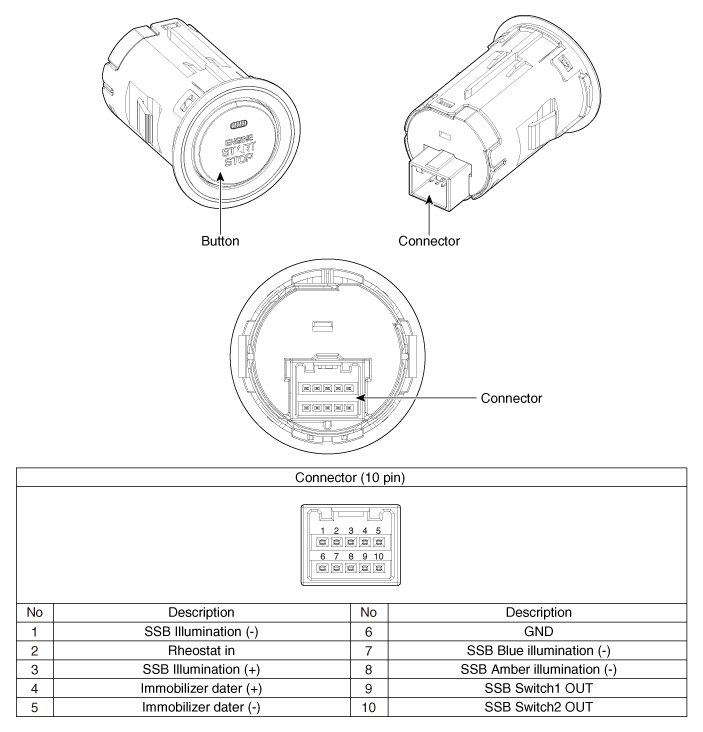

Component

Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the center facia panel (Refer to Body - "Crash Pad")

3.	Remove the audio unit. (Refer to Audio - "Audio Unit")

4.	Remove the start/stop button (A) after disengaging the mounting clip (B).

5.	Disconnect the start/stop button connector (A).

Installation

1.	Install the start/stop button.

2.	Install the crash pad lower panel.

3.	Connect the negative (-) battery terminal.
