Hyundai Creta: Storage compartment / Sunglass holder

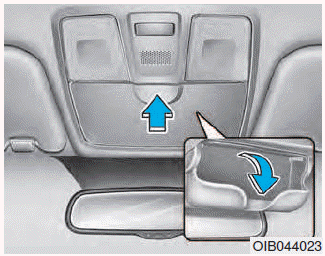

To open the sunglass holder, press the cover and the holder will slowly open. Place your sunglasses in the compartment door with the lenses facing out.
To close the sunglass holder, push back into position. Make sure the sunglass holder is closed while driving.
WARNING
- Do not keep objects except sunglasses inside the sunglass holder. Such objects can be thrown from the holder in the event of a sudden stop or an accident, possibly injuring the passengers in the vehicle.
- Do not open the sunglass holder while the vehicle is moving. The rear view mirror of the vehicle can be blocked by an open sunglass holder.
- Do not put the glasses forcibly into a sunglass holder. It may cause personal injury if you try to open it forcibly when the glasses are jammed in holder.
Glove box
To open the glove box, pull the lever
and the glove box will automatically
open. Close the glove box after use.
WARNING
ALWAYS close the glove box door
after use.
An open glove box door can ...
