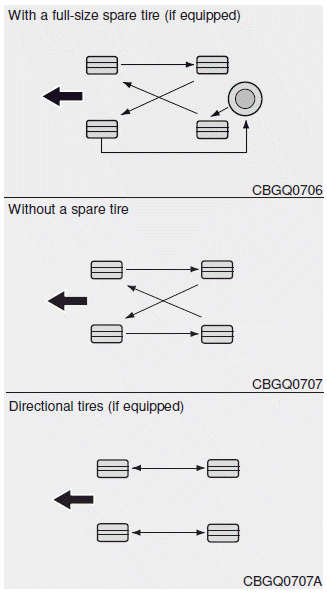

To equalize tread wear, it is recommended that the tires be rotated every 12,000 km (7,500 miles) or sooner if irregular wear develops.
During rotation, check the tires for correct balance.
When rotating tires, check for uneven wear and damage. Abnormal wear is usually caused by incorrect tire pressure, improper wheel alignment, outof- balance wheels, severe braking or severe cornering. Look for bumps or bulges in the tread or side of tire. Replace the tire if you find either of these conditions. Replace the tire if fabric or cord is visible. After rotation, be sure to bring the front and rear tire pressures to specification and check lug nut tightness.
Refer to “Tire and wheels” in chapter 8.

Disc brake pads should be inspected for wear whenever tires are rotated.
Information
Rotate radial tires that have an asymmetric tread pattern only from front to rear and not from right to left.
WARNING
Checking tire inflation pressure
Wheel alignment and tire balanceHyundai Creta GS 2014-2019 Service Manual: Piston and Connecting Rod
Components and components location
Components
1. Piston ring (#1)
2. Piston ring (#2)
3. Oil ring
4. Piston
5. Piston pin
6. Connecting rod
7. Connecting rod upper bearing
8. Connecting rod lower bearing
9. Connecting rod bearing cap
...
Hyundai Creta GS 2014-2019 Service Manual: Muffler
Components and components location
Components
1. Front muffler
2. Catalytic converter & center muffler
3. Main muffler
4. Hanger
Repair procedures
Removal and Installation
Front Muffler
1.
Disconnect the ...
