Description and operation

Description
•
Monitoring the vehicle's operating conditions to determine the optimal gear setting.
•
Performing a gear change if the current gear setting differs from the identified optimal gear setting.
•
Determining the need for damper clutch (D/C) activation and engages the clutch accordingly.
•
Calculating the optimal line pressure level by constantly monitoring the torque level and adjusts the pressure accordingly.
•
Diagnosing the automatic transaxle for faults and failures.

Schematic diagrams

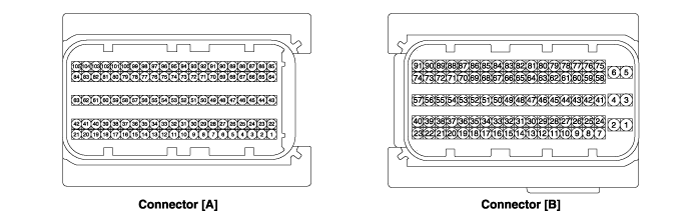

1. TCM Connector and Terminal Function

2. TCM Terminal Function
Connector [A]
Pin
Description
Pin
Description
22
 Overdrive clutch control solenoid valve (OD/C_VFS)
 73
 Inhibitor switch signal "S4"
23
 Pressure control solenoid (VFS-LINE)
 74
 Inhibitor switch signal "S2"
26
 ON/OFF solenoid valve B (SS-B)
 75
 Inhibitor switch signal "S3"
37
 Sports mode up switch
 87
 Solenoid power 1
38
 Sports mode select switch
 88
 Solenoid power 2
39
 Oil temperature sensor (-)
 89
 ON/OFF solenoid valve A (SS-A)
43
 Underdrive brake control solenoid valve
(UD/B_VFS)
 94
 Inhibitor switch signal "S1"
44
 35R clutch control solenoid valve (35R/C_VFS)
 95
 Output speed sensor power
45
 Torque converter control solenoid (T/CON_VFS)
 96
 Input speed sensor power
46
 26 brake control solenoid valve (26/B_VFS)
 99
 Input speed sensor signal
58
 Sports mode down switch
 100
 Output speed sensor signal
59
 Oil temperature sensor (+)
 　
 　

Connector [B]
Pin
Description
Pin
Description
1
 GND (Power)
 5
 VB (Battery voltage)
2
 GND (Power)
 60
 CAN High
3
 VB (Battery voltage)
 68
 IG.1 ( Ignition key)
4
 Ground (Power)
 77
 CAN Low

TCM Terminal input/ output signal
Connector [A]
Pin
Description
Condition
Input/output value
Type
Level
22
 Overdrive clutch control solenoid valve
(OD/C_VFS)
 -
 Output
 0V / Battery voltage level
9V < Battery voltage level < 16V
23
 Line pressure control solenoid valve
(LINE_VFS)
 ­-
 Output
 0V / Battery voltage level
9V < Battery voltage level < 16V
26
 ON/OFF solenoid valve B (SS-B)
 High
 Output
 0V / Battery voltage level
Low
 9V < Battery voltage level < 16V
37
 Sports mode up switch
 Up ON
 Input
 0V / Battery voltage level
Other
 9V < Battery voltage level < 16V
38
 Sports mode select switch
 Sport mode
 Input
 0V / Battery voltage level
Other
 9V < Battery voltage level < 16V
39
 Oil temperature sensor (+)
 ON
 Input
 0V / 3.3V
OFF
43
 Underdrive brake control solenoid valve
(UD/B_VFS)
 ­-
 Output
 0V / Battery voltage level
9V < Battery voltage level < 16V
Power supply : V_SOL2
44
 35R clutch control solenoid valve
(35R/C_VFS)
 ­-
 Output
 0V / Battery voltage level
9V < Battery voltage level < 16V
45
 Torque converter control solenoid valve
(T/CON_VFS)
 ­-
 Output
 0V / Battery voltage level
9V < Battery voltage level < 16V
46
 26 brake control solenoid valve
(26/B_VFS)
 ­-
 Output
 0V / Battery voltage level
9V < Battery voltage level < 16V
Power supply : V_SOL2
58
 Sports mode down switch
 Down ON
 Input
  0V / Battery voltage level
Other
 9V < Battery voltage level < 16V
59
 Oil temperature sensor (-)
 -
 Ground
 0V
73
 Inhibitor switch signal "S4"
 High
 Input
 0V / Battery voltage level
Low
 9V < Battery voltage level < 16V
74
 Inhibitor switch signal "S2"
 High
 Input
 0V / Battery voltage level
Low
 9V < Battery voltage level < 16V
75
 Inhibitor switch signal "S3"
 High
 Input
 0V / Battery voltage level
Low
 9V < Battery voltage level < 16V
89
 ON/OFF solenoid valve A (SS-A)
 High
 Output
 0V / Battery voltage level
Low
 9V < Battery voltage level < 16V
94
 Inhibitor switch signal "S1"
 High
 Input
 0V / Battery voltage level
Low
 9V < Battery voltage level < 16V
95
 Output speed sensor power
 ON
 Power
 0V / 7.5V
OFF
96
 Input speed sensor power
 ON
 Power
 0V / 7.5V
OFF
99
 Input speed sensor signal
 High
 Input
 0.7V / 1.4V
Low
100
 Output speed sensor signal
 High
 Input
 0.7V / 1.4V
Low

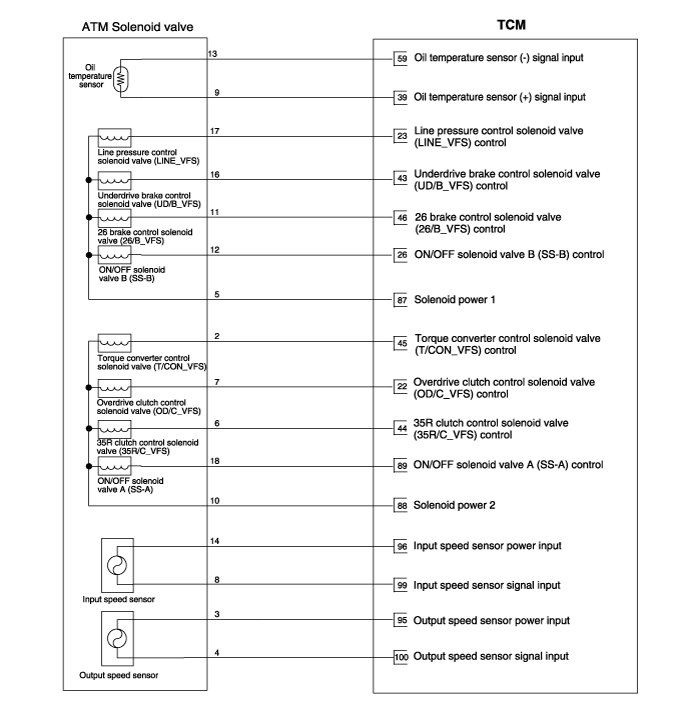

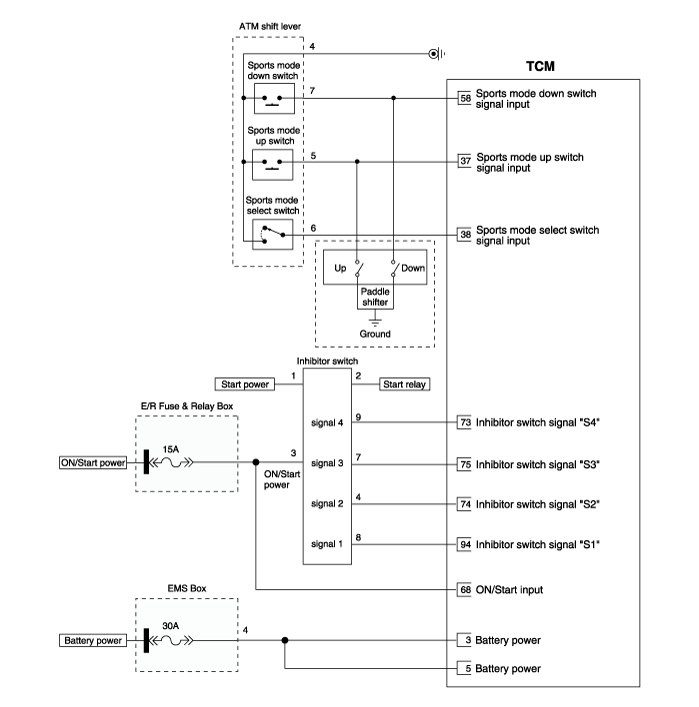

Circuit Diagram

Repair procedures

Inspection
Transaxle Control Module (TCM) Problem Inspection Procedure
1.
TEST TCM GROUND CIRCUIT: Measure resistance between TCM and chassis ground using the backside of TCM harness connector as TCM side check point. If the problem is found, repair it.
Specification: Below 1 Ω
2.
TEST TCM CONNECTOR: Disconnect the TCM connector and visually check the ground terminals on TCM side and harness side for bent pins or poor contact pressure. If the problem is found, repair it.
3.
If problem is not found in Step 1 and 2, the TCM could be faulty. If so, make sure there were no DTC's before swapping the TCM with a new one, and then check the vehicle again. If DTC's were found, examine this first before swapping TCM.
4.
RE-TEST THE ORIGINAL TCM: Install the original TCM (may be broken) into a known-good vehicle and check the vehicle. If the problem occurs again, replace the original TCM with a new one. If problem does not occur, this is intermittent problem (Refer to “Intermittent Problem Inspection Procedure” in Basic Inspection Procedure).
Removal
1.
Turn ignition switch OFF.
2.
Disconnect the negative (-) battery cable.
3.
Remove the battery.
4.
Disconnect the TCM connector (A).
5.
Remove the TCM (A) after removing the bolt and nut.
TCM installation bolt/nut:
9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Installation
1.
Install in the reverse order of removal.

•
Perform the procedures related in the ECM after replacing the TCM.
(Refer to Engine Control / Fuel System - "Engine Control Module")
•
Perform the TCM adaptive values learning procedure.
(Refer to Automatic Transaxle Control System - "Repair procedures")
