| Description |
| • |
Transaxle oil temperature sensor monitors the automatic transaxle fluid's
temperature and conveys the readings to TCM.
|
| • |
It is an NTC (Negative Thermal Coefficient) sensor whose resistance
has an inversely proportional relationship with the temperature level.
|
| • |
Data produced by this sensor is used to identify damper clutch activation
and deactivation zones within the low temperature and high temperature
range and to compensate hydraulic pressure levels during gear changes.
|
| Specifications |
|
Temp. [(°C)°F] |
Resistance (kΩ) |
|
(-40) -40 |
48.1 |
|
(-20) -4.0 |
15.6 |
|
(0) 32.0 |
5.88 |
|
(20) 68.0 |
2.51 |
|
(40) 104.0 |
1.19 |
|
(60) 140.0 |
0.61 |
|
(80) 176.0 |
0.32 |
|
(100) 212.0 |
0.18 |
|
(120) 248.0 |
0.11 |
|
(140) 284.0 |
0.07 |
|
(160) 320.0 |
0.04 |

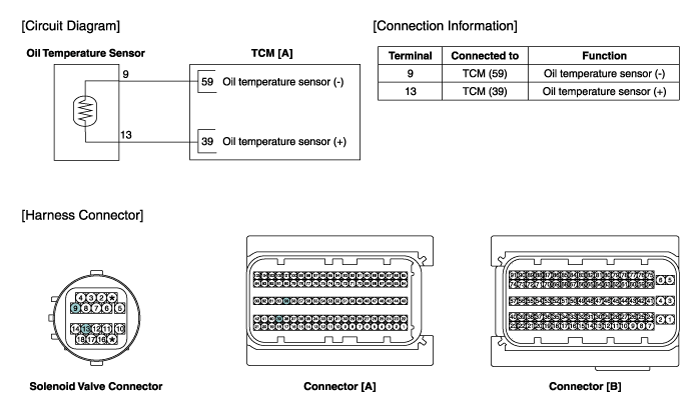

| Circuit Diagram |

| Inspection |
| 1. |
Turn ignition switch OFF.
|
| 2. |
Remove the battery and battery tray.
|
| 3. |
Disconnect the solenoid valve connector (A).
|
| 4. |
Measure resistance between sensor signal terminal and sensor ground
terminal.
|
| 5. |
Check that the resistance is within the specification.
|
| Removal |
| 1. |
Remove the valve body assembly.
(Refer to Valve body System - "Valve Body")
|
| 2. |
Disconnect the input & output speed sensor connector (A).
|
| 3. |
Loosen the main connctor bolt (B).
|
| 4. |
Disconnect the solenoid valve connector (A).
|
| 5. |
Remove the solenoid valve connector mounting clip (A).
|
| 6. |
Remove the solenoid valve connector (A) by pushing down from the transaxle.
|
| Installation |
| 1. |
To install, reverse the removal procedure.
|
| 2. |
Check fluid level, after filling the automatic transaxle with fluid.
(Refer to Hydraulic System - "Fluid")
|
