WARNING
Do not use the or
position
during cooling operation in
extremely humid weather. The difference
between the temperature
of the outside air and that of the
windshield could cause the outer
surface of the windshield to fog
up, causing loss of visibility. Set
the mode selection to the
position and fan speed control to a
lower speed.

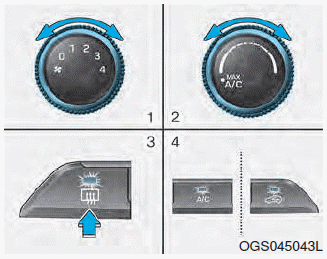

To defog inside windshield
1. Select desired fan speed.
2. Select desired temperature.
3. Select the or
position.
4. The outside (fresh) air will be selected
automatically. Additionally, the air
conditioning (if equipped) will automatically
operate if the mode is
selected to the or
position.
If the air conditioning and outside (fresh) air position are not selected automatically, press the corresponding button manually.

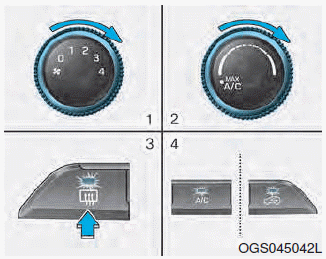

To defrost outside windshield
1. Set the fan speed to the highest (extreme right) position.
2. Set the temperature to the extreme hot position.
3. Select the position.
4. The outside (fresh) air and air conditioning (if equipped) will be selected automatically.

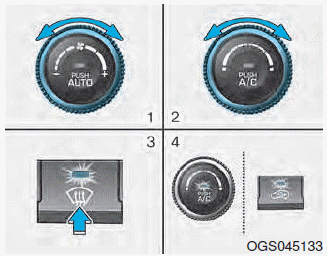

To defog inside windshield
1. Select desired fan speed.
2. Select desired temperature.
3. Press the defroster button ().
4. The air-conditioning will turn on according to the detected ambient temperature, outside (fresh) air position and higher fan speed will be selected automatically.
If the air-conditioning, outside (fresh) air position and higher fan speed are not selected automatically, adjust the corresponding button or knob manually.
If the position is selected,
lower
fan speed is adjusted to higher fan
speed.

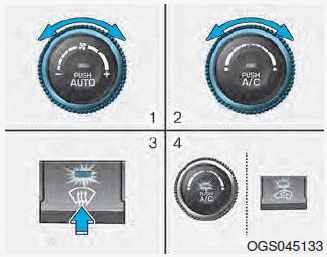

1. Set the fan speed to the highest position.
2. Set the temperature to the extreme hot (HI) position.
3. Press the defroster button ().
4. The air-conditioning will turn on according to the detected ambient temperature and outside (fresh) air position will be selected automatically.
If the position is selected,
lower
fan speed is adjusted to higher fan
speed.

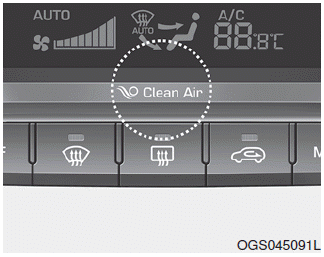

When the ignition switch is in the ON position, the clean air function turns on automatically.
Also, the clean air function turns off automatically, when the ignition switch turns to the OFF position.

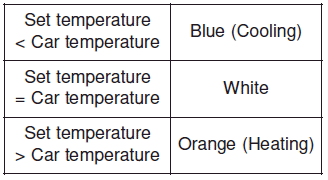

Mood bar color changes by temperature when parking light is ON position.
Auto defogging reduces the possibility of fogging up the inside of the windshield by automatically sensing the moisture of inside the windshield.
The auto defogging system operates when the heater or air conditioning is on.
Information
The auto defogging system may not operate normally, when the outside temperature is below -10 °C.
When the Auto Defogging System operates, the indicator will illuminate.
If higher level of moisture are sensed in the vehicle, the Auto Defogging System will operate in the following order:
Step 1 : Outside air position
Step 2 : Operating the air conditioning
Step 3 : Blowing air toward the windshield
Step 4 : Increasing air flow toward
the windshield
If the air conditioning is off or recirculated air position is manually selected while Auto Defogging System is ON, the Auto Defogging System Indicator will blink 3 times to signal that the manual operation has been canceled.

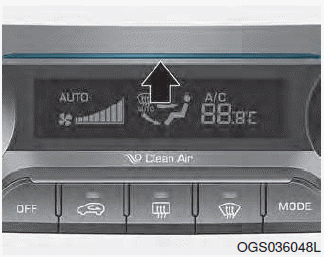

To cancel or reset the Auto Defogging System
Press the front windshield defroster button for 3 seconds when the ignition switch is in the ON position. When the Auto Defogging System is canceled, ADS OFF symbol will blink 3 times and the ADS OFF will be displayed on the climate control information screen.
When the Auto Defogging System is reset, ADS OFF symbol will blink 6 times without a signal.
Information
NOTICE

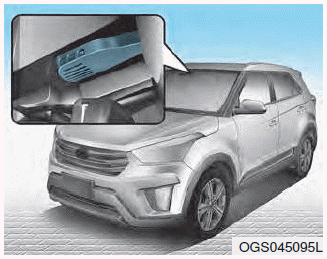

Do not remove the sensor cover located on the upper end of the driver side windshield glass.
Damage to system parts could occur and may not be covered by your vehicle warranty.
