Hyundai Creta: Convenient features of your vehicle / Wipers and washers

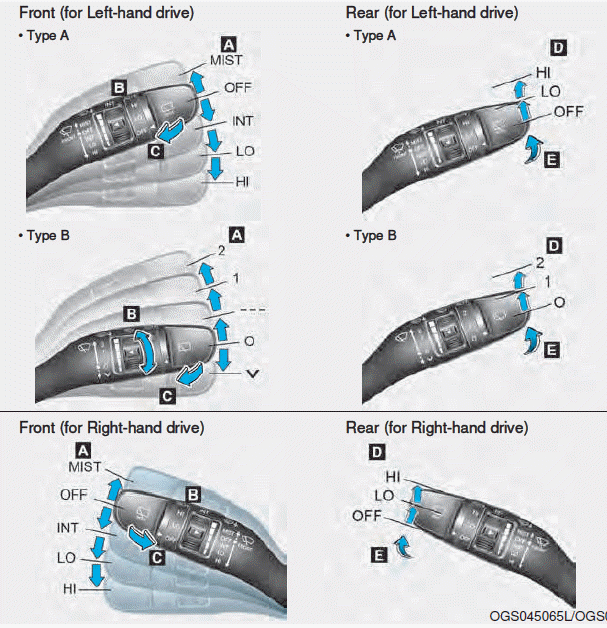

A : Wiper speed control (front)
- / MIST – Single wipe
- O / OFF – Off
- --- / INT – Intermittent wipe
- AUTO* – Auto control wipe
- 1 / LO– Low wiper speed
- 2 / HI – High wiper speed
B : Intermittent control wipe time adjustment
C : Wash with brief wipes (front)
D : Rear wiper control*
- 2 / HI – High wiper speed
- 1 / LO – Low wiper speed
- O / OFF – Off
E : Wash with brief wipes (rear)
Interior lights
WARNING
Do not use the interior lights when
driving in the dark. The interior
lights may obscure your view and
cause an accident.
NOTICE
Do not use the interior lights for
extended periods ...
Windshield wipers
Operates as follows when the ignition
switch is in the ON position.
MIST : For a single wiping cycle,
move the lever to or MIST
position and release. The
wipers will operate continuously
if ...
