Hyundai Creta: Door locks / Child-protector rear door locks
The child safety lock is provided to help prevent children seated in the rear from accidentally opening the rear doors. The rear door safety locks should be used whenever children are in the vehicle.
The child safety lock is located on
the edge of each rear door. When the
child safety lock is in the lock position
(
), the rear door will not open if
the inner door handle is pulled.

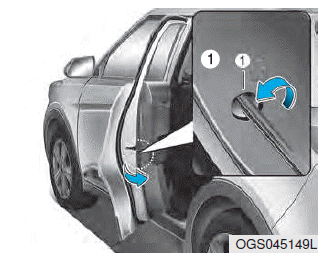

To lock the child safety lock, insert a
key (or screwdriver) into the hole (1)
and turn it to the lock () position.
To allow a rear door to be opened from inside the vehicle, unlock the child safety lock.
WARNING
If children accidently open the rear doors while the vehicle is in motion, they could fall out of the vehicle. The rear door safety locks should always be used whenever children are in the vehicle.
Auto door lock/unlock features
Impact sensing door unlock system
(if equipped)
All doors will be automatically
unlocked when an impact causes the
air bags to deploy.
Speed sensing door lock system
(if equipped)
All doors ...
Theft-alarm system
This system helps to protect your
vehicle and valuables. The horn will
sound and the hazard warning lights
will blink continuously if any of the
following occurs:
- A door is opened without u ...
