Hyundai Creta GS 2014-2019 Service Manual / Body Electrical System / Smart Key System / Components and components location

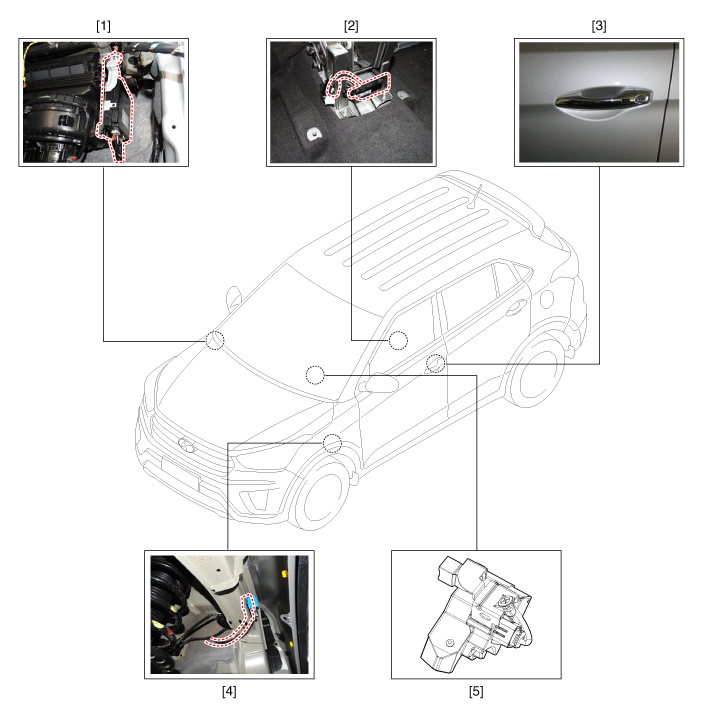

Component Location (1)

1. Smart key unit
2. Interior antenna 1
3. Door outside handle

4. Buzzer
5. Electronic steering column lock (ESCL)

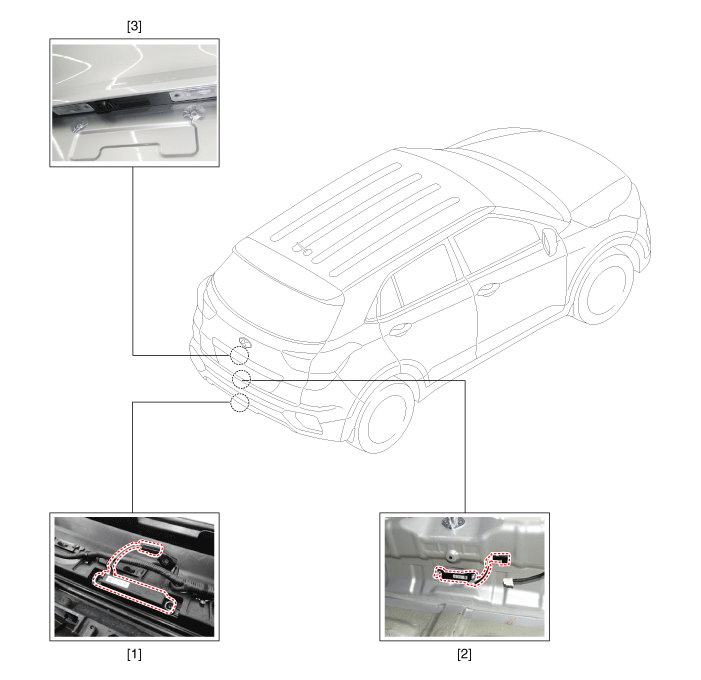

Component Location (2)

1. Tailgate open switch
2. Bumper antenna

3. Interior antenna 2

Specifications

Specifications Smart Key Unit Items Specification Rated voltage DC 12V Operating voltage DC 9 ~ 16 ...

Description and operation

Description The SMART KEY system is a system that allows the user to access and operate a vehicle in a very convenient way. To access the vehicle, no traditional key or remote co ...
