Hyundai Creta: Floor Console / Console Armrest

Hyundai Creta GS 2014-2024 Service Manual / Body (Interior and Exterior) / Floor Console / Console Armrest

Components and components location

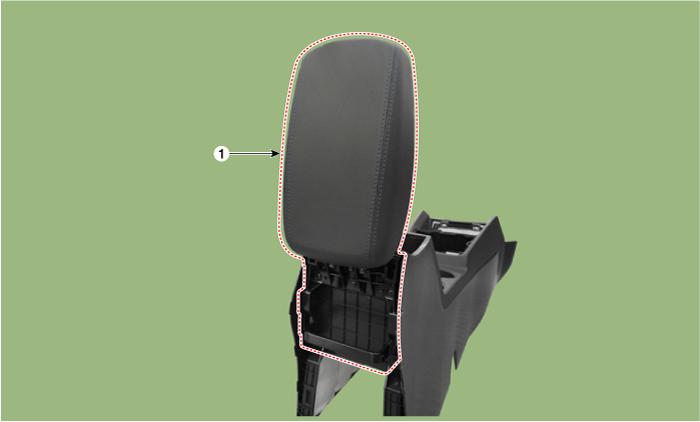

Component Location

1. Console armrest

Repair procedures

Replacement

•
Put on gloves to protect your hands.

•
When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the floor console assembly.
(Refer to Floor Console - "Floor Console Assembly")
2.
After loosening the mounting screws, then remove the console armrest (A) by using a screw driver.
3.
To install, reverse the removal procedure.

•
Replace any damaged clips.
