1. CRUISE indicator
2. SET indicator
The Cruise Control system allows you to drive at speeds above 40 km/h (25 mph) without depressing the accelerator pedal.
WARNING
Take the following precautions:
- Driving in heavy or varying
speed traffic.
- On slippery (rainy, icy or snow
covered) roads.
- Hilly or winding roads.
- Very windy areas.

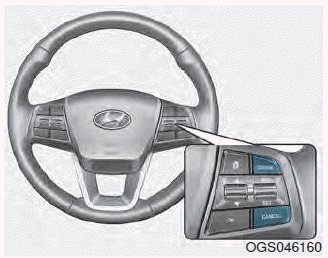

CRUISE: Turns cruise control system on.
CANCEL: Cancels cruise control operation.
RES+: Resumes or increases cruise control speed.
SET-: Sets or decreases cruise control speed.

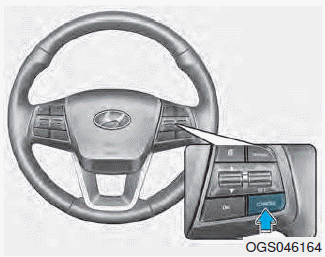

1. Push the CRUISE button on the
steering wheel to turn the system
on. The /CRUISE indicator
will
illuminate.
2. Accelerate to the desired speed, which must be more than 40 km/h (25 mph).
Information
For manual transaxle vehicles, you should depress the brake pedal at least once to set the cruise control after starting the engine.

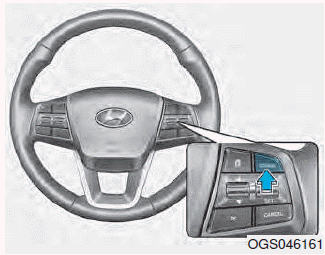

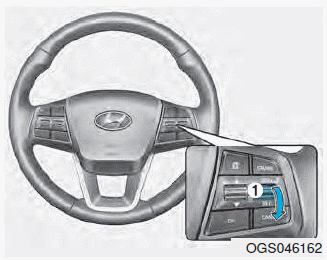

3. Push the lever (1) down (SET-), and release it. The SET indicator light will illuminate.
4. Release the accelerator pedal.
Information
The vehicle may slow down or speed up slightly while going uphill or downhill.
Depress the accelerator pedal. When you take your foot off the accelerator, the vehicle will return to the previously set speed.
If you push the lever down (SET-) at the increased speed, the Cruise Control will maintain the increased speed.
Information
Each of the above actions will cancel Cruise Control operation (the SET indicator light in the instrument cluster will go off), but only pressing the CRUISE button will turn the system off. If you wish to resume Cruise Control operation, push the lever up (RES+) located on your steering wheel. You will return to your previously preset speed, unless the system was turned off using the CRUISE button.

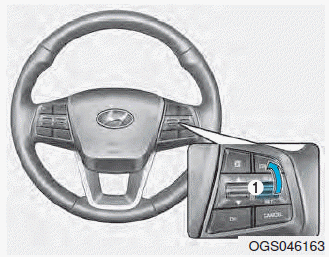

Push the lever (1) up (RES+). If the vehicle speed is over 40 km/h (25 mph), the vehicle will resume the preset speed.
