Hyundai Creta: Your vehicle at a glance / Exterior overview

1. Front windshield wiper blades
2. Outside rearview mirror
3. Door
4. Windows
5. Head light
6. Front fog light
7. Daytime running light
8. Hood
9. Tires and wheels

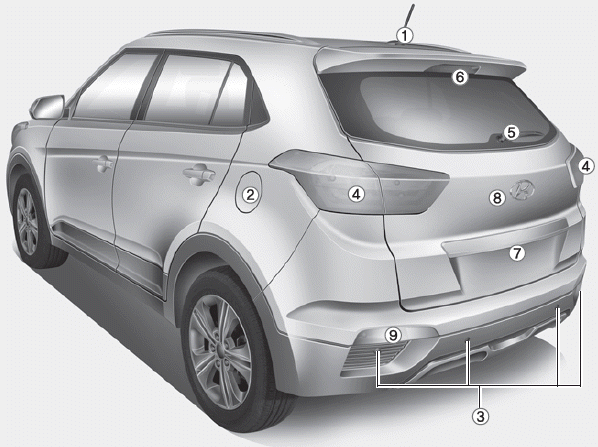

■ Rear view

1. Antenna
2. Fuel filler lid
3. Rear parking assist system
4. Rear combination lamp
5. Rear window wiper blade
6. High mounted stop lamp
7. Rearview camera
8. Tailgate
9. Rear fog light

Your vehicle at a glance
...

Interior overview
■ Right Hand Drive 1. Door lock/unlock button 2. Outside rearview mirror folding switch 3. Outside rearview mirror control switch 4. Power window switches 5. Power window lock switch ...
