Hyundai Creta: Timing System / Front Oil Seal

Hyundai Creta GS 2014-2019 Service Manual / Engine Mechanical System / Timing System / Front Oil Seal

Components and components location

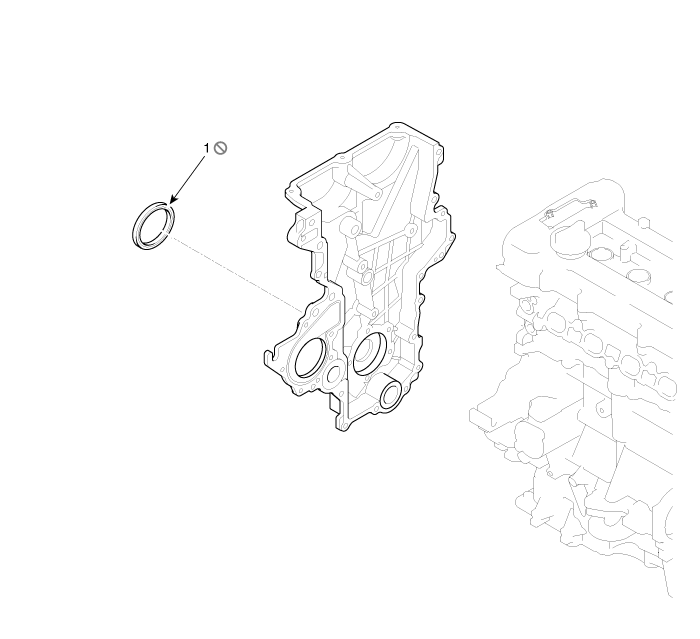

Components

1. Front oil seal

Repair procedures

Replacement

1.	Remove the crankshaft damper pulley. (Refer to Timing System - "Crankshaft Damper Pulley")

2.	Remove the front oil seal (A).

Using the SST(09455-21200) (A), install a new front oil seal.

•	Do not reuse the front oil seal.

•	Insert the oil seal into the timing chain cover as shown in illustration.
