Hyundai Creta: Front Seat / Front Seat Shield Inner Cover

Components and components location

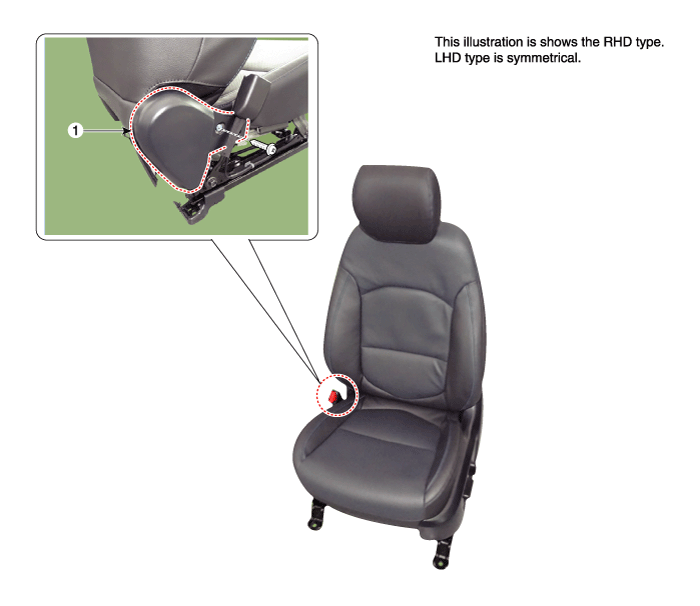

Component Location

1. Front seat shield inner cover


Repair procedures

Replacement

Put on gloves to protect your hands.

When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
1.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
2.
After loosening the mounting screw, then remove the front seat shield inner cover (A).

3.
To install, reverse the removal procedure.

Replace any damaged clips.
