Lincoln Nautilus: Rear Seats / Manual Seats

Head Restraint Components

Rear Seat Outermost Head Restraints

The head restraints consist of:

1. An energy absorbing head restraint.
2. Two steel stems.
3. Guide sleeve unlock and remove buttons.
4. Fold button.

Rear Seat Center Head Restraint

The head restraint consists of:

1. An energy absorbing head restraint.
2. Two steel stems.
3. Guide sleeve adjust and unlock button.
4. Guide sleeve unlock and remove button.

Adjusting the Head Restraint

Raising the Head Restraint

To raise the center head restraint, pull the head restraint up.

Lowering the Head Restraint

To lower the center head restraint:

1. Press and hold the adjust and unlock button.
2. Push the head restraint down.

Folding the Head Restraint

Press and hold the fold button.

Pull the head restraint back up to reset.

Removing the Head Restraint

Outermost Head Restraints

1. Press and hold the unlock and remove buttons.
2. Pull the head restraint up.

Center Head Restraint

1. Pull the head restraint up until it reaches its highest position.
2. Press and hold the adjust and unlock button, and the unlock and remove button.
3. Pull the head restraint up.

Installing the Head Restraint

Align the steel stems into the guide sleeves and push the head restraint down until it locks.

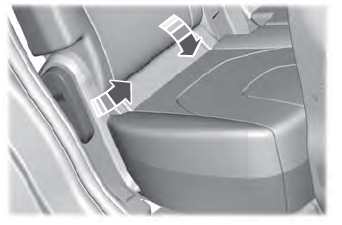

Folding the Seat Backrest

WARNING: To prevent possible damage to the seat or seatbelts, make sure that the seatbelts are not fastened before folding the seatback.

WARNING: When folding or unfolding the seats, take care not to get your fingers caught between the seat backrest and seat frame. Failure to follow this warning could result in serious personal injury.

With the seat empty, pull the lever up to fold the seat backrest forward.

Unfolding the Seat Backrest

WARNING: When unfolding the seat backrests, make sure that the seatbelts are not trapped behind the seat.

WARNING: Make sure that the seats and the seat backrests are secure and fully locked in their catches.

Rotate the seat backrest up until it latches in the upright position. It clicks when you lock it into position.

Reclining the Seat Backrest

With the seat occupied, pull the lever up to recline the seat backrest.
