Hyundai Creta: Audio / Mic: Repair procedures

Inspection
1.
Disconnector the negative (-) battery terminal.
2.

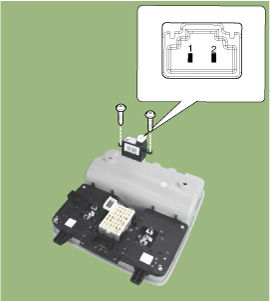

Remove the mounting screws (2EA).
And then remove the overhead console (A).

3.
Remove the overhead console after disconnect the connector (A).

4.
Check the continuity of between terminals.

AUX(Auxiliary) Jack
