Components and components location

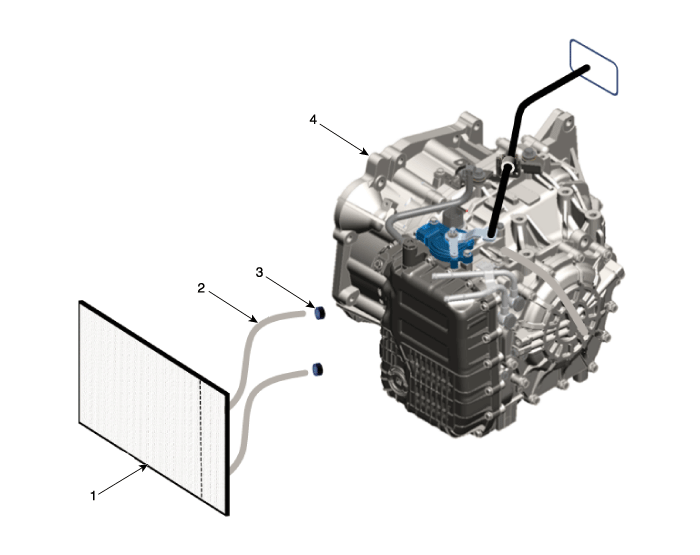

Components Location

1. ATF cooler
2. ATF cooler hose

3. Clamp
4. Automatic transaxle

Repair procedures

•	ATF cooler is a unit with the radiator, so refer to radiator removal / installation procedures in the engine section.

Description and operation

Description • Engine coolant is used for circulating heat in order to heat and cool the transaxle oil. • Prevents over heating ...
