WARNING

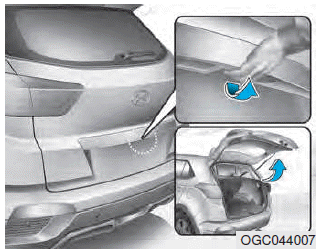

The tailgate swings upward. Make sure no objects or people are near the rear of the vehicle when opening the tailgate.
NOTICE
Make certain that you close the tailgate before driving your vehicle. Possible damage may occur to the tailgate lift cylinders and attaching hardware if the tailgate is not closed prior to driving.
Tailgate
