Hyundai Creta: Rear Suspension System / Rear torsion beam axle

Hyundai Creta GS 2014-2019 Service Manual / Suspension System / Rear Suspension System / Rear torsion beam axle

Components and components location

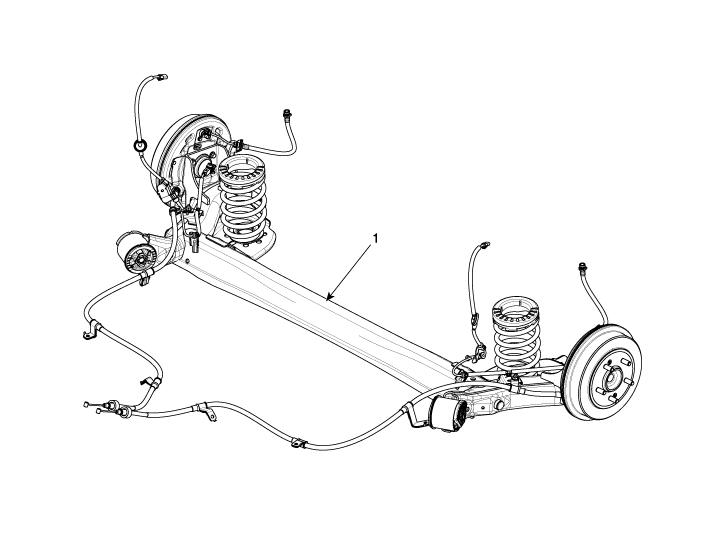

Components

1. Rear torsion beam axle

Repair procedures

Removal
1.
Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported.
2.
Remove the rear wheel and tire (A).
Tightening torque :
88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

•
Be careful not to damage the hub bolts when removing the rear wheel and tire.

3.
Remove the rear hub bearing assembly.
(Refer to Driveshatf and axle - "Rear Axle Assembly ")
4.
Remove the backing plate.
(Refer to Brake System - "Parking brake Assembly ")
5.
Remove the shock absorber from the torsion beam axle. [Both side]
6.
Pull the torsion beam axle in the direction of a down and then remove the coil spring (A).
7.
Set a jack for saftey.
8.
Loosen the mounting bolts (A) and then remove the torsion beam axle.
Tightening torque :
137.3 ~ 156.9 N.m (14.0 ~ 16.0 kgf.m, 101.3 ~ 115.7 lb-ft)
[RH]

[LH]
9.
Install in the reverse order of removal.
