Components and components location

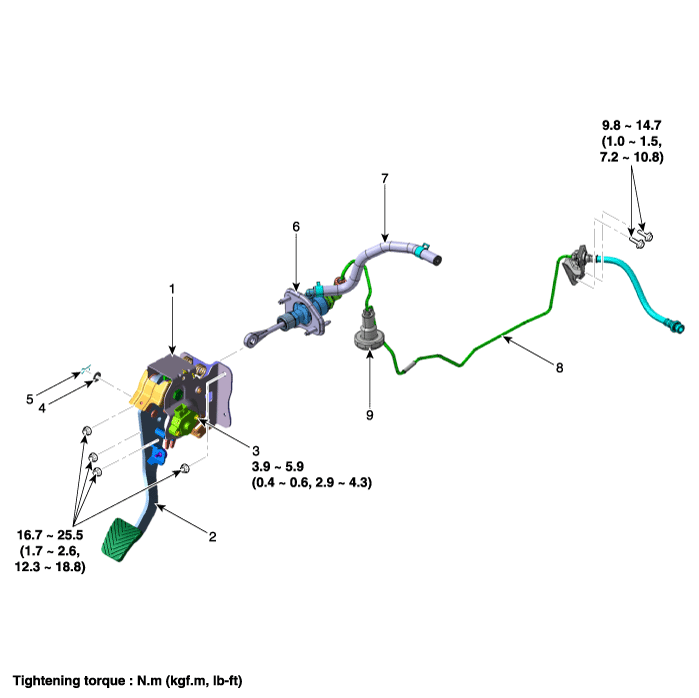

Components

1. Clutch pedal assembly
2. Clutch pedal arm
3. Ignition lock & clutch switch
4. Washer

5. Snap pin
6. Master cylinder
7. Reservoir hose
8. Clutch tube
9. Regulator

Repair procedures

Removal

1.	Remove the air cleaner assembly. (Refer to Engine Mechanical System - " Air Cleaner)

2.	Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery")

3.	Remove the ECM. (Refer to Engine Control System - "ECM")

4.	Remove the fuel filter. (Refer to Fuel Delivery System - "Fuel Filter")

5.	Disconnect the clutch tube (C) after removing the fixing pin (B).

Remove the clutch regulator (A).

•	Do not spill brake fluid on the vehicle it may damage the paint if brake fluid does contact the paint, wash it off immediately with water.

Installation

1.	Install in the reverse order of removal.

2.	After be equipped, perform bleeding air procedure in clutch release cylinder after pouring the brake fluid. (Refer to Clutch System - "Clutch Release Cylinder")
