Hyundai Creta: Electric Power Steering / Schematic diagrams
Hyundai Creta GS 2014-2019 Service Manual / Steering System / Electric Power Steering / Schematic diagrams

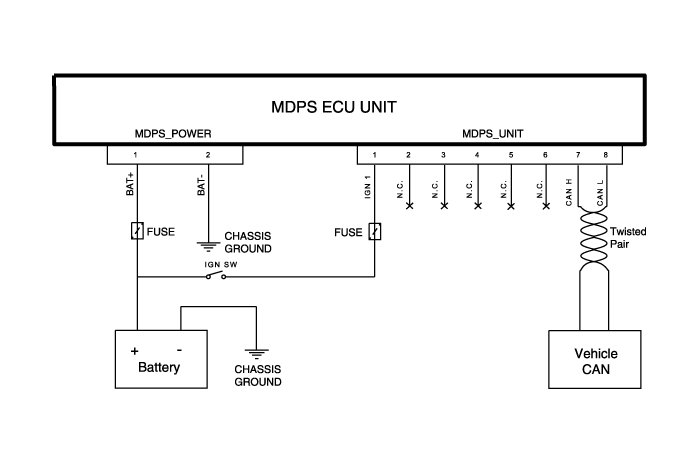

| Schematic Diagrams |

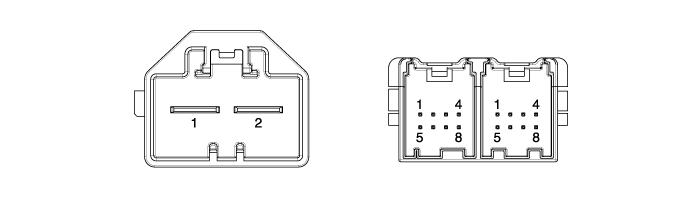

| Terminal function |
|
Type |
Pin No |
Description |
|
MDPS Power |
1 |
Battery + |
|
2 |
Battery - |
|
|
MDPS Unit |
1 |
IGN |
|
2 |
- |
|
|
3 |
- |
|
|
4 |
- |
|
|
5 |
- |
|
|
6 |
- |
|
|
7 |
CAN_High |
|
|
8 |
CAN_Low |
