Hyundai Creta: Automatic Transaxle Control System / SS-A Solenoid Valve (ON/OFF)

Hyundai Creta GS 2014-2025 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / SS-A Solenoid Valve (ON/OFF)

Description and operation

Description

•	SS-A solenoid valve is attached to the valve body and is an on/off solenoid valve that is used to change gears.

•	SS-A Solenoid valve (ON/OFF) is installed at valve body.

Specifications

ON/OFF Solenoid Valve (SS-A, SS-B)

▷ Control type : Normally low type

Control pressure [kpa (kgf/cm², psi)]	490.33 (5.0, 71.12)
Internal resistance (Ω)	10 ~ 11

Schematic diagrams

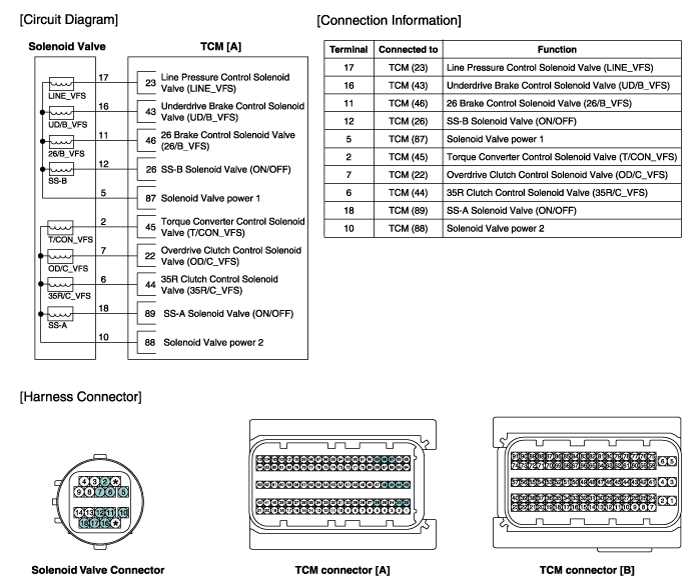

Circuit Diagram

Repair procedures

Inspection

1.	Turn ignition switch OFF.

2.	Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery")

3.	Disconnect the solenoid valve connector (A).

4.	Measure resistance between solenoid valve terminals.

Check that the resistance is within the specification.

•	If DTC about the Torque Converter Control Solenoid Valve is found, replace according to the procedures removal / installation.

Removal

1.	Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery")

2.	Remove the under cover. (Refer to Engine Mechanical System - "Engine Room Under Cover")

Remove the drain plug (A) and reinstall the drain plug after draining ATF totally.

Drain plug tightening torque :

33.3 ~ 43.1 N.m (3.4 ~ 4.4 kgf.m, 24.6 ~ 31.8 lb-ft)

•	Replace the gasket before reinstalling the drain plug.

•	After the installation, start the engine and then check if there are any leakages from the drain plug.

Remove the wiring mounting bolt (A) or clip.

Tightening torque :

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

5.	Disconnect the air breather hose (A) from the valve body cover.

Remove the valve body cover (A).

•	Replace the gasket (B) before reinstalling the valve body cover.

•	After the installation, start the engine and then check if there are any leakages from the valve body cover.

Disconnect the oil temperature sensor (A) and solenoid valve connector (B) from the valve body.

Tightening torque :

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

•	Check for the looseness, poor connection, bending, corrosion, contamination, deterioration, and damage before reinstalling the solenoid valve connector

Remove the solenoid valve support bracket (A).

Tightening torque :

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Remove the SS-B solenoid valve (A).

•	When installing, apply the ATF oil or white vaseline to the O-ring (A) not to be damaged.

Installation

1.	To install, reverse the removal procedure.

2.	Check fluid level, after filling the automatic transaxle with fluid. (Refer to Hydraulic System - "Fluid")

3.	Perform the TCM adaptive values learning procedure. (Refer to Automatic Transaxle Control System - "Repair procedures")
