Hyundai Creta: Cooling System / Thermostat

Components and components location

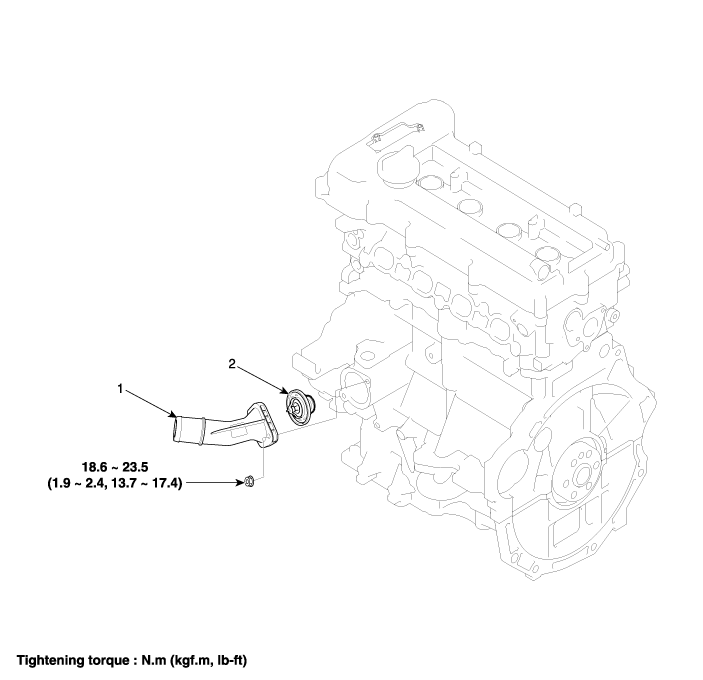

Components

1. Water inlet fitting
2. Thermostat

Repair procedures

Removal

Disassembly of the thermostat would have an adverse effect, causing a lowering of cooling efficiency.
1.
Drain engine coolant so that its level would be under the thermostat height.
2.
Disconnect the radiator lower hose (B).

3.
Remove the water inlet fitting (A) and thermostat (B).

Inspection
1.
Immerse the thermostat in water and gradually heat the water.

2.
Check the valve opening temperature.
Valve opening temperature :
82±1.5°C (179.6±2.7°F)
Full opening temperature :
95°C (203°F)
If the valve opening temperature is not as specified, replace the thermostat.
3.
Check the valve lift.
Valve lift :
8mm(0.3in) or more at 95°C (203°F)
If the valve lift is not as specified, replace the thermostat.
Installation
1.
Place the thermostat in the block.
(1)
Install the thermostat (B) with the jiggle valve upward.
(2)
Install the new O-ring.
2.
Install the water inlet fitting (A).
Tightening torque :
18.6 ~ 23.5 N.m (1.9 ~ 2.4 kgf.m, 13.7 ~ 17.4 lb-ft)

3.
Connect the radiator lower hose (B).

4.
Fill with engine coolant.
5.
Start engine and check for leaks.

Troubleshooting

Troubleshooting
Symptoms
Possible Causes
Remedy
Coolant leakage
From the thermostat gasket
Check the mounting bolts
Check the torque of the mounting bolts
Retighten the bolts and check leakage again.
Check the gasket for damage
Check gasket or seal for damage
Replace gaskets and reuse the thermostat.
Cooled excessively
Low heater performance (cool air blowed-out)
Thermogauge indicates 'LOW'
Visually check after removing the radiator cap.
Insufficient coolant or leakage.
After refilling coolant, recheck.
GDS check&Starting engine
Check DTCs
Check connection of the fan clutch or the fan motor.
※ If the fan clutch is always connected, there will be a noise at idle.
Check the engine coolant sensor, wiring and connectors.
Replace the componants.
Remove the thermostat and inspect
Check if there are dusts or chips in the thermostat valve.
Check adherence of the thermostat.
Clean the thermostat valve and reuse the thermostat.
Replace the thermostat, if it doesn't work properly.
Heated excessively
Engine overheated
Thermogauge indicates 'HI'
Visually check after removing the radiator cap.
Insufficient coolant or leakage.
※ Be careful when removing a radiator cap of the overheated vehicle.
Check air in cooling system.
After refilling coolant, recheck.
Check the cylinder head gaskets for damage and the tightening torque of the mounting bolts.
GDS check&Starting engine
Check DTCs
Check the fan motor performance as temperature varies.
Check if the fan clutch slips.
Check the water pump adherence or impeller damaged.
Check the engine coolant sensor, wiring and connectors.
Check the fan motor, the relay and the connector.
Replace the fan clutch, if it doesn't work properly.
Replace the water pump, if it doesn't work properly.
Immerse the thermostat in boiling water and inspection.
After removing the thermostat, check it works properly.
※ Check the thermostat opens at the valve opening temperature.
Replace the thermostat, if it doesn't work properly.
