Hyundai Creta: Specifications & Consumer information / Vehicle certification label

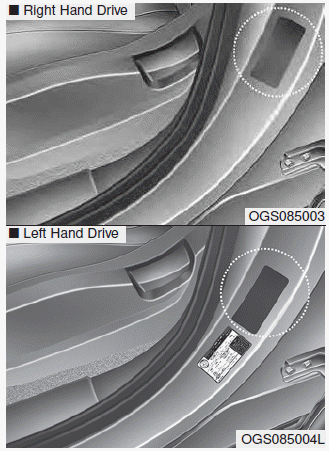

The vehicle certification label attached on the driver’s (or front passenger’s) side center pillar gives the vehicle identification number (VIN).
Vehicle identification number (VIN)
The vehicle identification number
(VIN) is the number used in registering
your car and in all legal matters
pertaining to its ownership, etc.
The number is punched on the floor
under the fr ...
Tire specification and pressure label
The tires supplied on your new vehicle
are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side (or front passenger’s side) center
pi ...
