Hyundai Creta: AVN System / AVN Remote Controller

Hyundai Creta GS 2014-2026 Service Manual / Body Electrical System / AVN System / AVN Remote Controller

Components and components location

Components

1. Remote control switch (LH)

2. Remote control switch (RH)

Schematic diagrams

Circuit Diagram

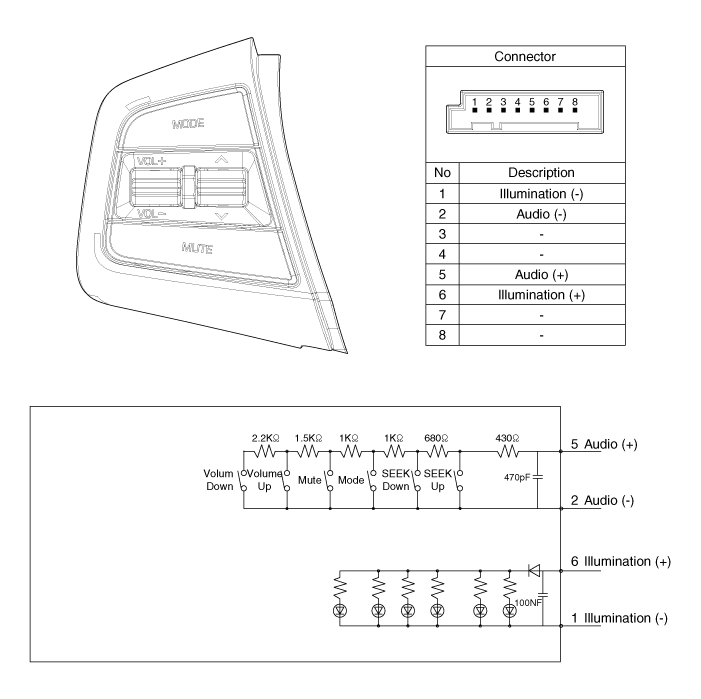

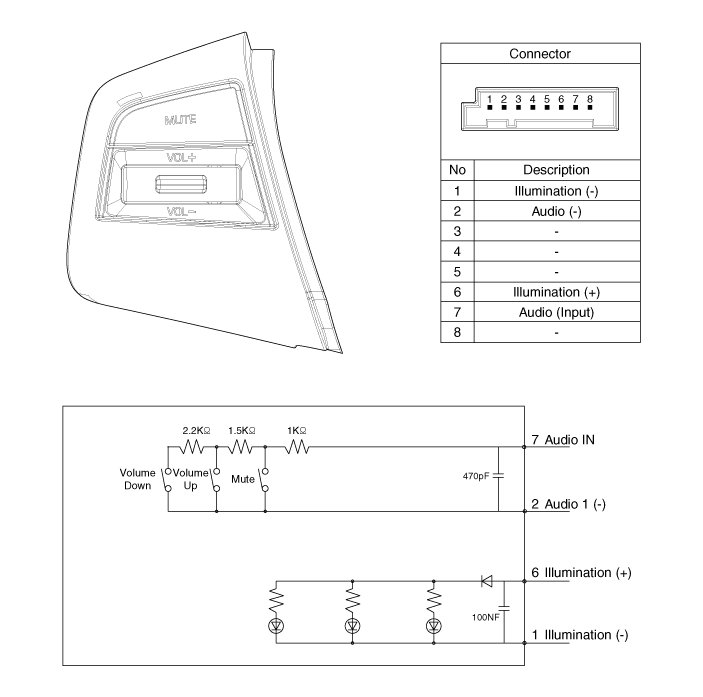

[Audio]

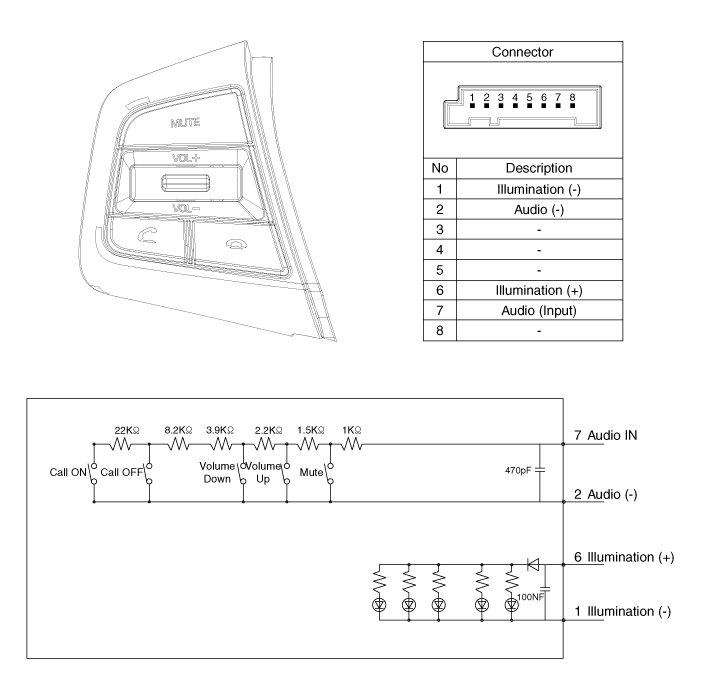

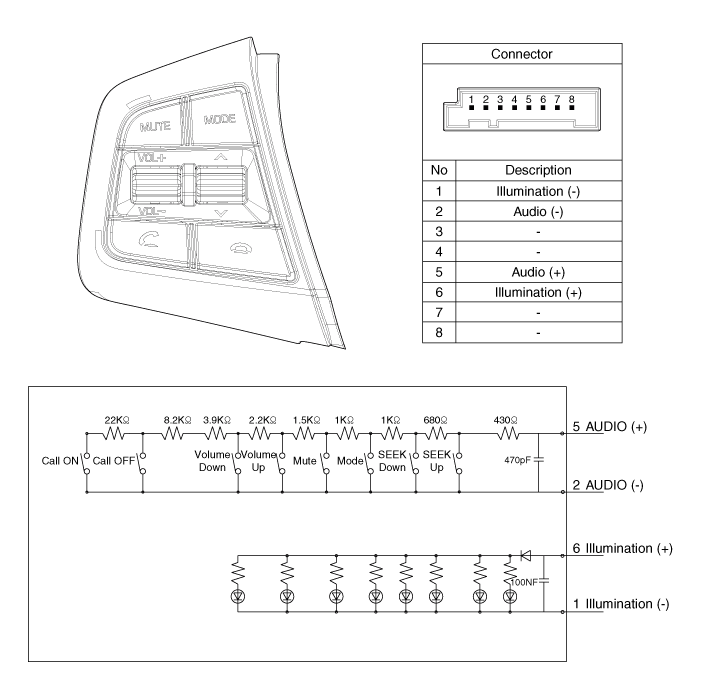

[Audio + Bluetooth]

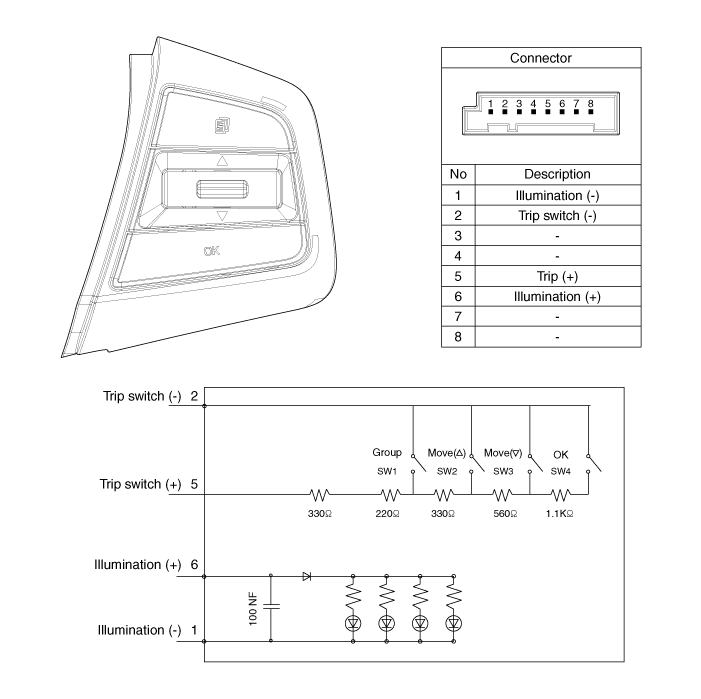

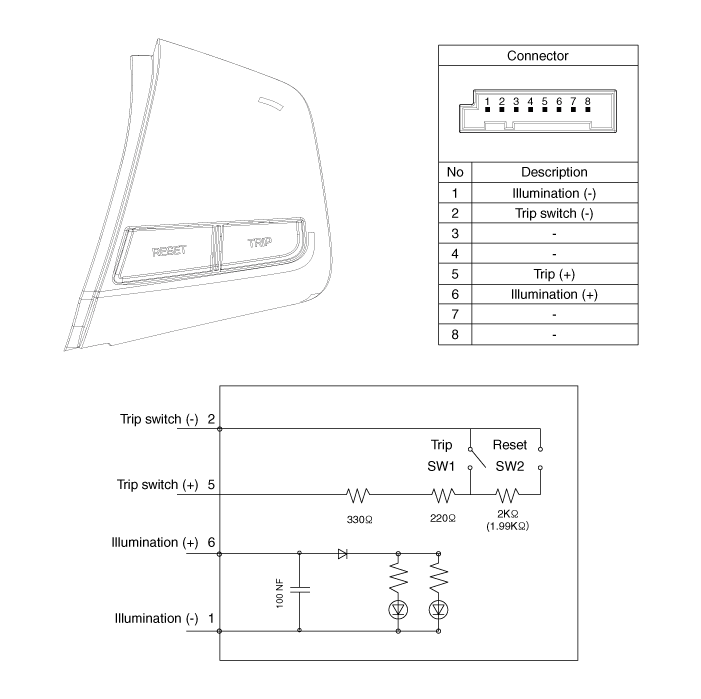

[Trip]

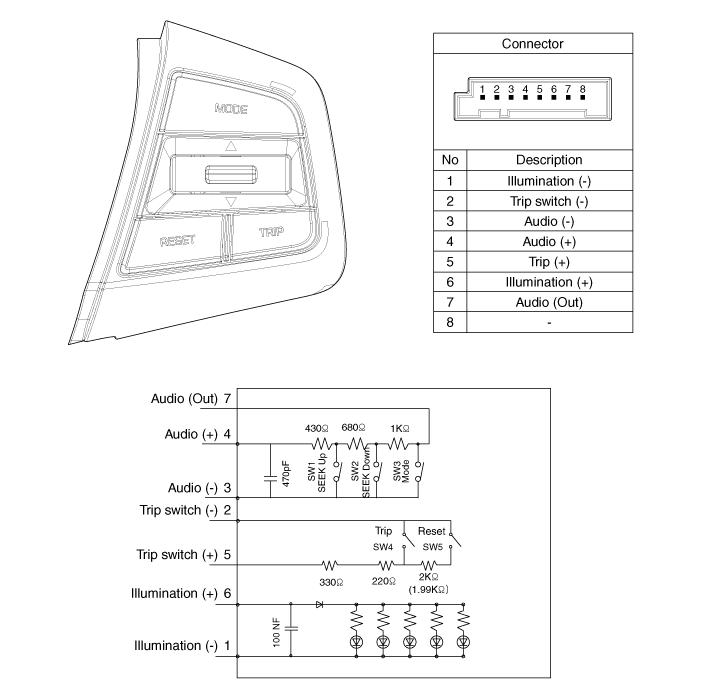

[Trip + Audio]

Repair procedures

Inspection

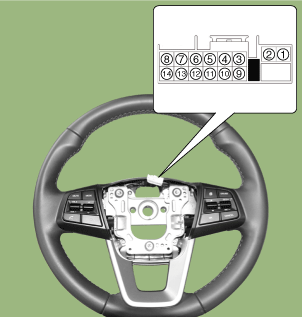

Check for resistance between terminals in each switch position.

[Audio + Bluetooth]

Switch	Connector terminal	Resistance (± 5%)
SEEK Up	9-10	430 Ω
SEEK Down		1.11 kΩ
MODE		2.11 kΩ
MUTE		3.11 kΩ
Volume (Up)		4.61 kΩ
Volume (Down)		6.81 kΩ
END		18.91 kΩ
SEND		40.91 kΩ

[Trip]

Switch	Connector terminal	Resistance (± 5%)
Menu / Trip	5-6	550 Ω
Chanel (Up)		880 Ω
Chanel (Down)		1.44 kΩ
OK / Reset		2.54 kΩ

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the driver airbag module. (Refer to Restraint - "Driver Airbag (DAB) Module and Clock Spring")

3.	Remove the steering wheel. (Refer to Steering System - "Steering Column and Shaft")

4.	Remove the steering wheel cover (A) after loosening the screws.

5.	Loosen the screws from the remote control switch.

6.	Remove the remote control switchs (A) after disconnecting the remote control switch connector (B).

Installation

1.	Install the remote control switch on the steering wheel.

2.	Install the steering wheel.

Reconnect the remote control switch connector and airbag connectors.

•	Make sure that the switch connector is plugged in properly.

4.	Install the driver airbag module.

5.	Connect the negative (-) battery terminal.
