When the wipers no longer clean adequately, the blades may be worn or cracked, and require replacement.
NOTICE
To prevent damage to the wiper arms or other components, do not attempt to move the wipers manually.
NOTICE
The use of a non-specified wiper blade could result in wiper malfunction and failure.
Front windshield wiper blade

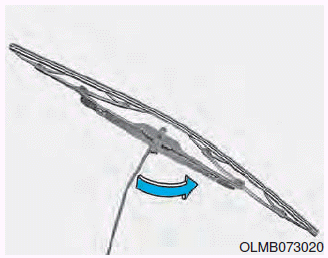

1. Raise the wiper arm and turn the wiper blade assembly to expose the plastic locking clip.
NOTICE
Do not allow the wiper arm to fall against the windshield, since it may chip or crack the windshield.

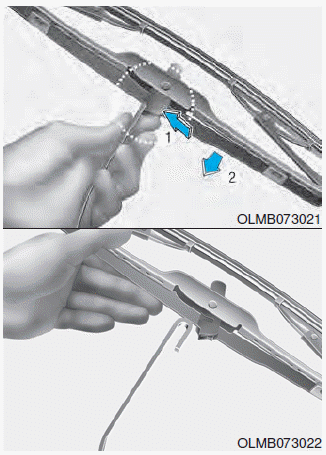

2. Compress the clip and slide the blade assembly downward.
3. Lift it off the arm.
4. Install the blade assembly in the reverse order of removal.
Rear window wiper blade

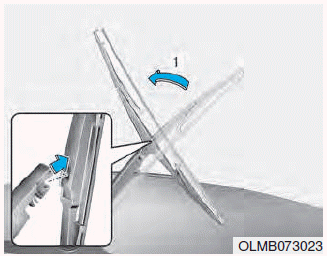

1.Raise the wiper arm and rotate the wiper blade assembly (1).
2.Pull out the wiper blade assembly.

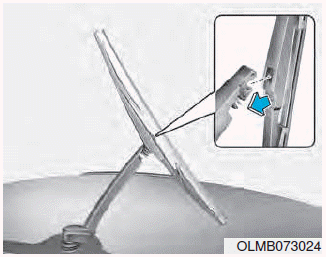

3.Install the new blade assembly by inserting the center part into the slot in the wiper arm until it clicks into place.
4.Make sure the blade assembly is installed firmly by trying to pull it slightly.
To prevent damage to the wiper arms or other components, we recommend that the wiper blade be replaced by an authorized HYUNDAI dealer.
