Hyundai Creta: Crash Pad / Cluster Fascia Panel

Components and components location

Component Location

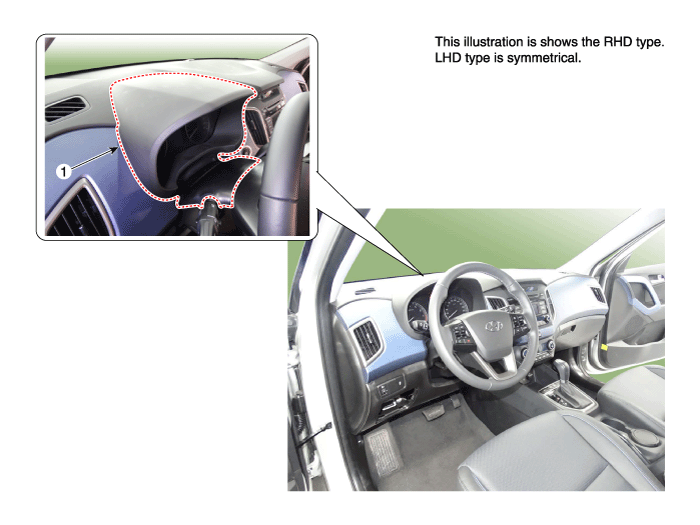

1. Cluster fascia panel


Repair procedures

Replacement

•
Put on gloves to protect your hands.

•
When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Lower the steering wheel.
2.
Using a screwdriver or remover, remove the cluster fascia panel (A).

3.
To install, reverse the removal procedure.

•
Replace any damaged clips.
Components and components location
Components (1) 1. Main crash pad assembly 2. Crash pad side cover [LH] 3. Crash pad side cover [RH] 4. Steering column shroud lower panel 5. Crash pad ...

Crash Pad Lower Panel
Components and components location Component Location 1. Crash pad lower panel Repair procedures Replacement ...
