Hyundai Creta: Front Bumper / Components and components location

Hyundai Creta GS 2014-2019 Service Manual / Body (Interior and Exterior) / Front Bumper / Components and components location

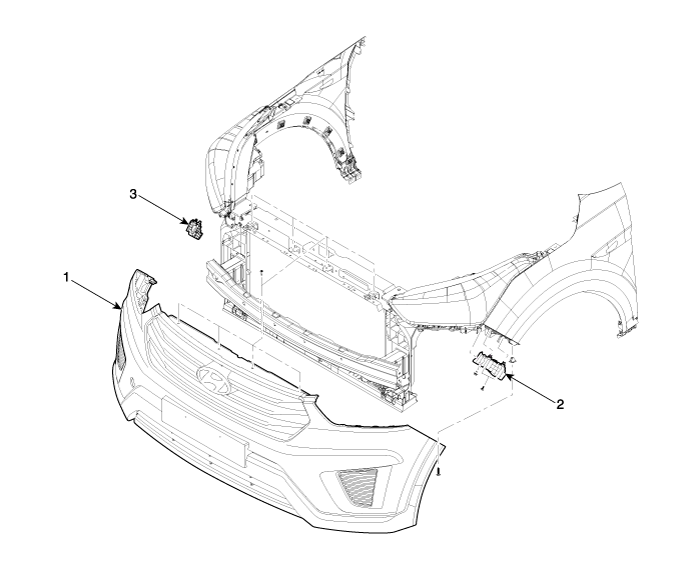

Components

1. Front bumper cover
2. Front bumper side bracket [LH]

3. Front bumper side bracket [RH]

Front Bumper Cover

Components and components location Component Location 1. Front bumper cover Repair procedures Replacement & ...
