Hyundai Creta: Body Side Molding / Door Garnish: Repair procedures

Hyundai Creta GS 2014-2025 Service Manual / Body (Interior and Exterior) / Body Side Molding / Door Garnish: Repair procedures

Replacement

•	Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Take care not to scratch the body surface.

1.	Remove the front door module. (Refer to Front Door - "Front Door Module")

2.	Remove the rear door module. (Refer to Rear Door - "Rear Door Module")

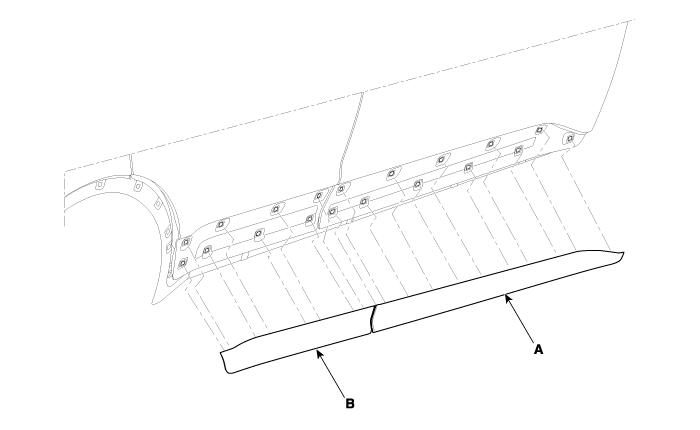

3.	After loosening the mounting nuts, then remove the front door garnish (A) and rear door garnish (B).

To install, reverse the removal procedure.

•	Replace any damaged clips.
