Lincoln Nautilus: Maintenance / Exterior Bulbs

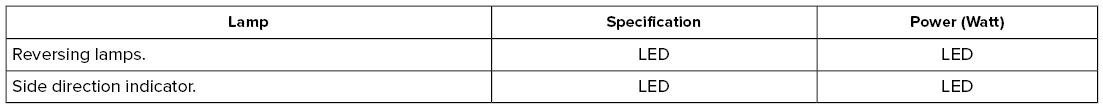

Exterior Bulb Specification Chart

Note: LED lamps are not serviceable. See an authorized dealer if they fail.

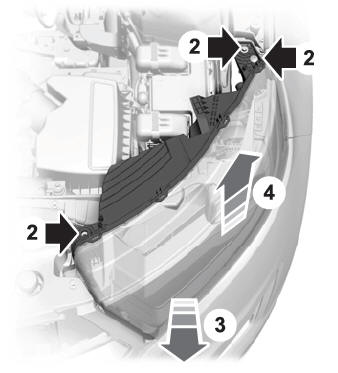

Removing a Headlamp Assembly

1. Open the hood. See Opening and Closing the Hood.



2. Remove the screws.
3. Pull the headlamp toward the front of the vehicle to disengage it from the lower fixing point.
4. Lift the headlamp up and remove it.

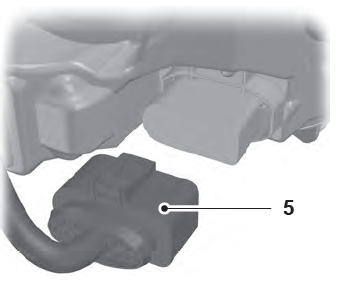

5. Disconnect the electrical connector.

Changing a Front Turn Signal Lamp Bulb

1. Headlamp low beam.

   Headlamp low and high beam - vehicles with high-intensity discharge headlamps.

2. Headlamp high beam.

   Daytime running lamp.

3. Front turn signal lamp.

1. Remove the headlamp assembly. See Removing a Headlamp Assembly.
2. Turn the bulb holder counterclockwise and remove it.
3. Remove the bulb by pulling it straight out.

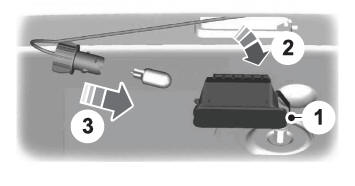

Changing a License Plate Lamp Bulb

1. Use a suitable tool, for example a screwdriver, to carefully remove the lamp.
2. Remove the lamp.
3. Turn the bulb holder counterclockwise and remove it.
4. Remove the bulb by pulling it straight out.
