Lincoln Nautilus: Luggage Compartment / Installing and Removing the Luggage Compartment Cover (If Equipped)
WARNING: Do not place objects on the luggage cover. Failure to follow this instruction could result in personal injury or death in the event of a sudden stop or crash.
Use the luggage cover to enclose items in the luggage compartment.
Installing the Luggage Cover
The luggage cover cassette attaches to the rear quarter trim panel.

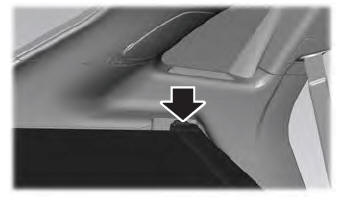

- Load the cassette into the rear quarter trim from the top down.
- Push the cassette down, the click
indicates the luggage cover is properly
installed.

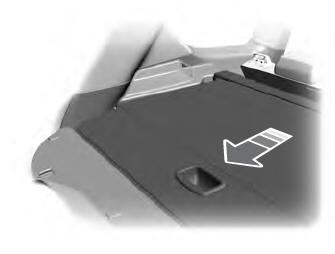

- Pull the cover straight back until it locks.
Removing the Luggage Cover
- To release the cover, tap the center of the board by the pull handle.

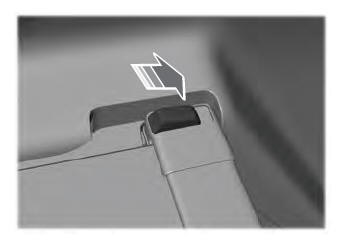

- To release the cassette from the rear quarter trim panel, slide the button forward.
- After sliding the button forward, lift the cassette up.
Note: There are buttons on both sides of the cassette.
Installing and Removing the Luggage Compartment Cargo Net
WARNING: This net is not designed
to restrain objects during a collision or
heavy braking.
Attach the net to the anchors. Repeat the
attachment on both sides of the vehicle.
...
