Schematic diagrams

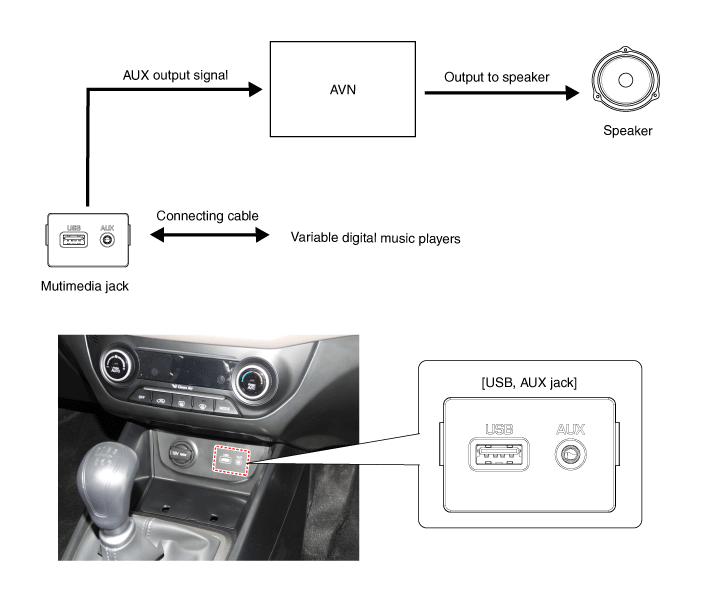

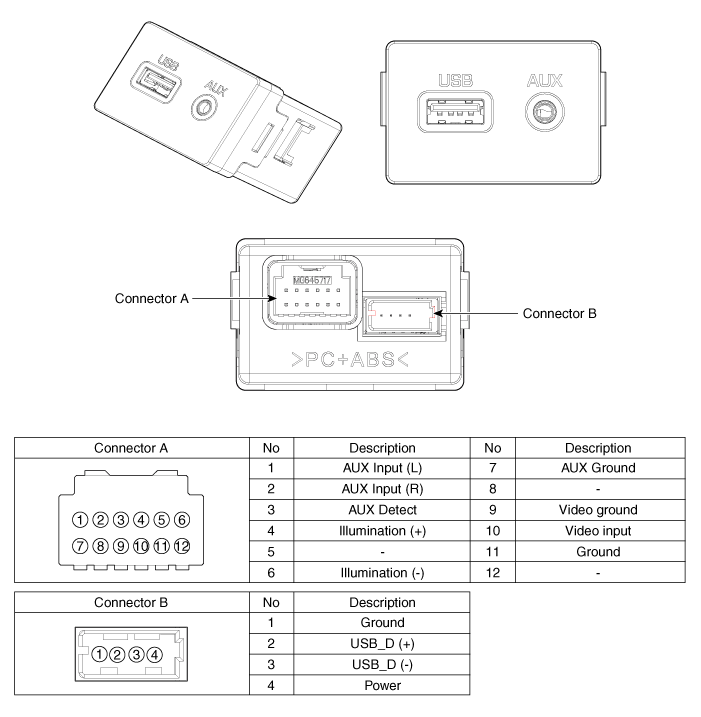

Circuit Diagram

Description and operation

Description

The multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP3 etc., through the vehicle's sound system when it is linked to this jack. The customer has this added option.

In case of distortions from media connected to the AUX source, the audio unit may not be defective but the output level of the used media does not match the specification of the AUX input.

Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the floor console front bezel (A) after disconnecting the connectors (B).

3.	Remove the multimedia jack (A) after disengaging the hooks (B).

Installation

1.	Install the multimedia jack.

2.	Install the console front complete assembly.

3.	Connect the negative (-) battery connector.
