Hyundai Creta: If you have a flat tire / Removing and storing the spare tire

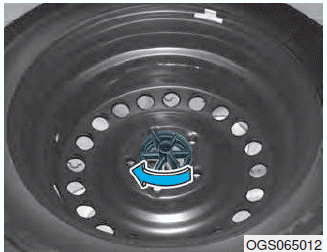

Turn the winged hold down bolt counterclockwise to remove the spare tire.
Store the spare tire in the same compartment by turning the winged hold down bolt clockwise.
To prevent the spare tire and tools from “rattling,” store them in their proper location.
