Hyundai Creta: Tail Gate / Repair procedures
Hyundai Creta GS 2014-2022 Service Manual / Body (Interior and Exterior) / Tail Gate / Repair procedures
| Adjustment |
| 1. |

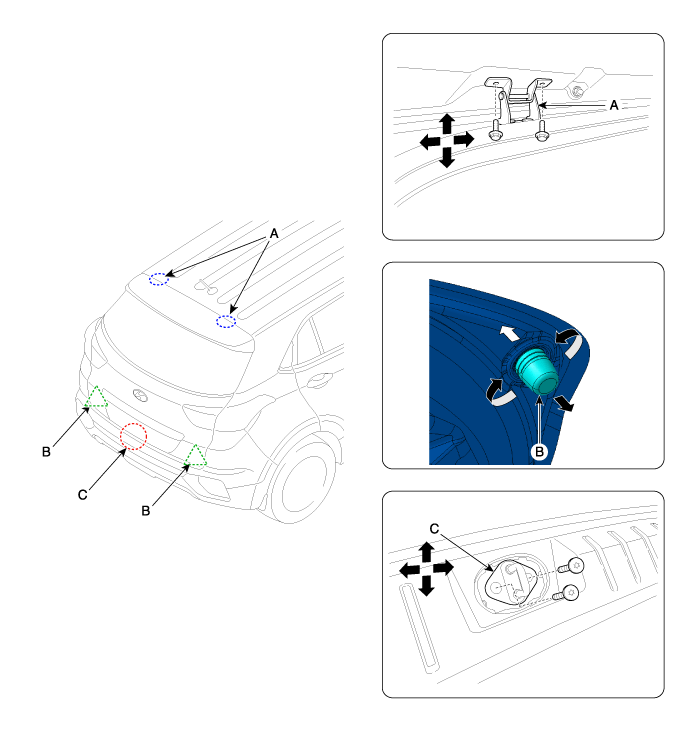

After loosening the tail gate hinge (A) mounting bolt, adjust the tail
gate by moving it up or down, or right or left.
|
| 2. |
Adjust the tail gate height by turning the tail gate overslam bumpers
(B).
|
| 3. |
Remove the rear transverse trim.
(Refer to Interior Trim - "Rear Transverse Trim")
|
| 4. |
After loosening the tail gate striker (C) mounting bolts, adjust the
tail gate striker by moving it up or down, or right or left.
|
