Lincoln Nautilus: Wipers and Washers / Replacing the Front Wiper Blades. Replacing the Rear Wiper Blades
Replacing the Front Wiper Blades

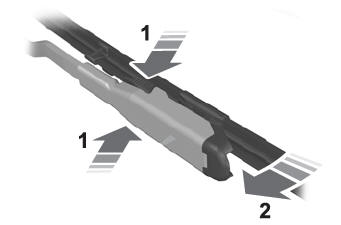

- Lift the wiper arm and then press the
wiper blade locking buttons together.
Note: Do not hold the wiper blade to lift the wiper arm.
Note: Make sure that the wiper arm does not spring back against the glass when the wiper blade is not attached.
- Slightly rotate the wiper blade.
- Remove the wiper blade.
- To install, reverse the removal procedure.
Note: Make sure that the wiper blade locks into place.
Reverse Wipe. Checking the Wiper Blades
Reverse Wipe
What Is Reverse Wipe
Reverse wipe turns on the rear window wiper
when you shift into reverse (R) and the
windshield wipers are on.
Reverse Wipe Settings
Using the instrument cluster c ...
Replacing the Rear Wiper Blades
Lift the wiper arm.Note: Do not hold the wiper blade to lift
the
wiper arm.
Remove the wiper blade.Note: Make sure that the wiper arm does
not spring back against the glass when the
wiper bla ...
