Hyundai Creta: Seat Belt Pretensioner / Seat Belt Pretensioner (BPT)

Description and operation

Description
The Seat Belt Pretensioners (BPT) are installed inside Center Pillar (LH & RH). When a vehicle crashes with a certain degree of frontal impact, the pretensioner seat belt helps to reduce the severity of injury to the front seat occupants by retracting the seat belt webbing. This prevents the front occupants from thrusting forward and hitting the steering wheel or the instrument panel when the vehicle crashes.
(Seat belt pretensioner may be activated in side impact collisions if the vehicle has side airbag or curtuain airbag.)

Never attempt to measure the circuit resistance of the Seat Belt Pretensioner (BPT) even if you are using the specified tester. If the circuit resistance is measured with a tester, the pretensioner will be ignited accidentally. This will result in serious personal injury.

Components and components location

Components

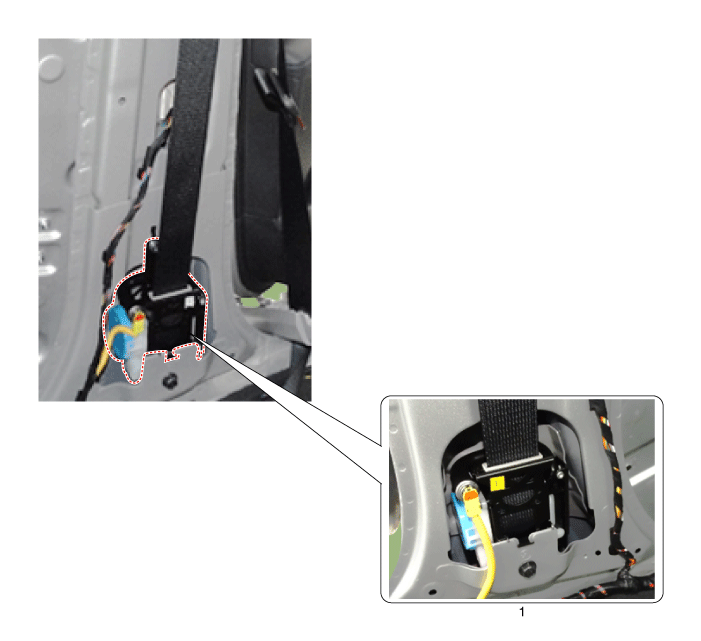

[Front BPT]

1. Seat Belt Pretensioner (BPT)


Components and components location

Components
[Front BPT]

1. Seat Belt Pretensioner (BPT)


Seat Belt Pretensioner
...
