Special Service Tools

Tool (Number and Name)	Illustration	Use
09200-3N000 Engine support fixture (Beam)		Removal and installation of the transmission. Use this beam (SST No. : 09200-3N000) with the supporter (SST No. : 09200-2S000). ※Permit operating with 09200-38001. ※Refer to the engine support fixture assembly drawing below.
A: 09200-2S000 B: 09200-2S100 C: 09200-2S200 Engine support fixture (Supporter)		Removal and installation of the transmission. Use this beam (SST No. : 09200-38001/3N000) with the supporter (SST No. : 09200-2S000). ※Refer to the engine support fixture assembly drawing below.
09431-26100 Oil seal installer		Installation of transaxle case oil seal. [Using with handle (SST No.:09231-H1100)]
09231-H1100 Bar		Installation of transaxle case oil seal. [Using with oil seal installer (SST No.:09452-26100)]

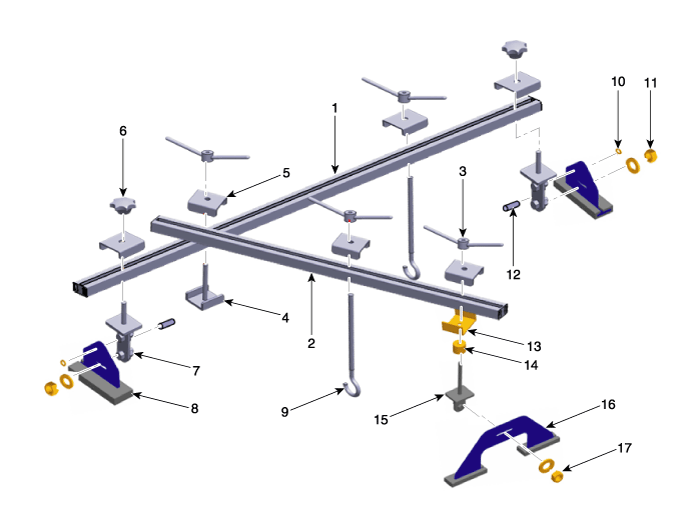

※ Engine support fixture special tool assembly drawing

1. 09200-3N000(Main bar)
2. 09200-3N000(Sub bar)
3. 09200-3N000(Handle)
4. 09200-3N000(Stopper)
5. 09200-3N000(Stopper)
6. 09200-3N000(Knobe)
7. 09200-3N000(Adapter)
8. 09200-2S000(Supporter)
9. 09200-3N000(Hanger)

10. 09200-3N000(Clip)
11. 09200-3N000(Nut)
12. 09200-3N000(Pin)
13. 09200-2S000(Stopper)
14. 09200-2S000(Spacer)
15. 09200-2S000(Adapter)
16. 09200-2S000(Supporte)
17. 09200-2S000(Nut)

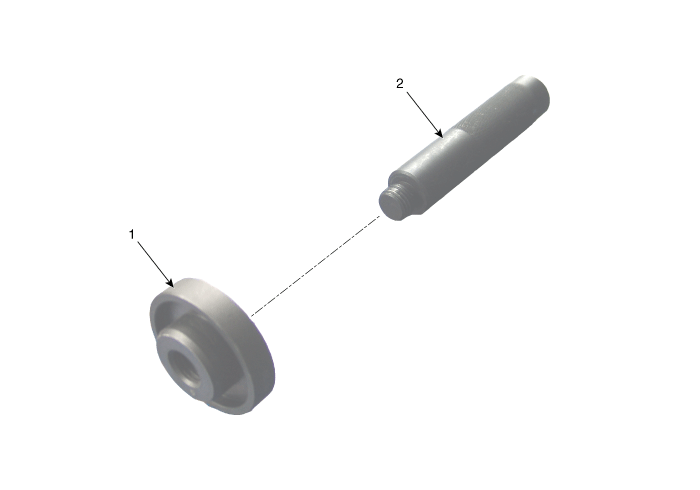

Oil seal installer special tool assembly drawing

1. 09431-26100 (Oil seal installer)

2. 09231-H1100 (Bar)
